SPECIFICATIONS
Brand Name: WenQia
Use: Universal
Use: Lighting
Use: SWITCH
Origin: Mainland China
Wireless Communication: RF
Wireless Communication: WIFI
Support APP: No
Certification: CE
Certification: RoHS
Frequency: 433 MHz
Channel: 1
Package: Yes
Model Number: 2201mw+KT05
Working Voltage: AC100-240V(50/60Hz)
Max current: 16A
Max load: 3000W
Controller working frequency: 433.92MHZ +2.4GHz WIFI
Receiver Body Size: 50*84mm
Weight: 80g
Working temperature: -10~+70 Celsius
Receiving Sensitivity: 97dbm
Amount of storage remote controls: 20 pieces

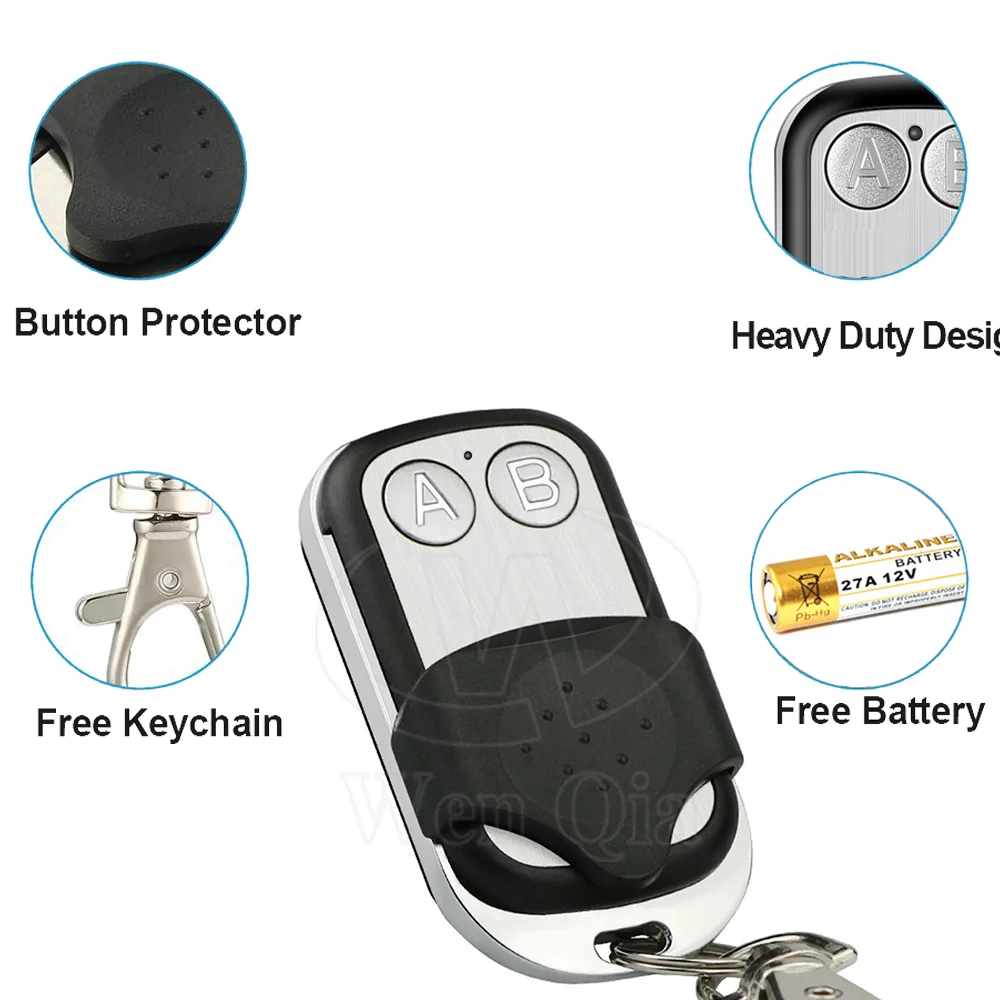

Remote Control Battery: 27A 12V (include)
Receiving range: Open space is more than 30 meters
Support App: Tuya or Smart Life
Application scenario: Family, Farm, Factory, Office, Supermarket
Application2: Light, LED, Lamps, Fan and so on
Application3: timing / Countdown / 3 Kinds Of Restart State APP Control mode
RF Operating mode: ASK superheterodyne wireless reception
Product Features:
1.Wifi+433mhz rf function
You can use your mobile phone to control when you go out, and you can also use wireless remote control when you are at home, which can meet the needs of a variety of venues.
2.16A high power
According to 220V voltage calculation, the maximum power can be 3000W, which can be used for water heaters, air conditioners, and so on.
3.Electricity statistics
View energy reports to properly track energy usage around your home. Know which devices consume the most energy, and make plans to save energy and electricity bills.
4.Overcharge protection
If the power is exceeded, the power will be cut off automatically to protect the electrical appliances and maximize the lifespan.
5.Set schedule
Turn the connected device on and off at the specified time. Schedule the living room fan to turn on in the morning or schedule your child's light to turn off to let them know it's time to go to bed.The countdown function allows you to set a timer that automatically turns off, so you don't have to doubt whether you have unplugged the device.
6.Voice control
Smart plugs can be used with devices supported by Alexa and Google Assistant for easy voice control.
7.No gateway required
The smart plug is suitable for any secure 2.4 GHz wireless network without the need for a separate gateway.
8.The Smart Life app is suitable for many smart home devices, allowing you to easily control your home from any Android or iOS device.
9.Applicable scenarios: living room, office, study, kitchen, bedroom, etc.
Smart Plug EU Standard Specification
– Product name: WiFi Smart Plug EU Standard
– Max power: 3000W(resistance loading)
– Working voltage: AC100-240V(50/60Hz)
– Wireless Type: 2.4GHz 802.11b/g/n
– Material: ABS flame retardant polymer
– Power consuming:<0.3W
– Working current: Max 16A
– With Power Energy Monitor
– Dimension: 82mm*71mm*76mm
– Cord Length:Wall Mounted
– APP Support:Android 4.1/ IOS 8.0 or above
– Support APP: "Tuya" or "Smart Life"
– Support: Compatible with Alexa and Google Assistant and Yandex Alice
Working Modes
Toggle mode:
Press A, turn on; Press A again, turn off.
Latched mode:
Press A, turn on; Press B again, turn off.
How to set up
Toggle Mode:
Press and hold the button (socket) once, the indicator light is on, release;
Press button A, blink 3 times, succeed.
Latched mode:
press and hold the button (socket) once, the indicator flashes once, release; Press A, press B, flash 3 times, succeed.
How to clear a signal
Press and hold the learning button until the indicator flashes 8 times (about 7 seconds).
