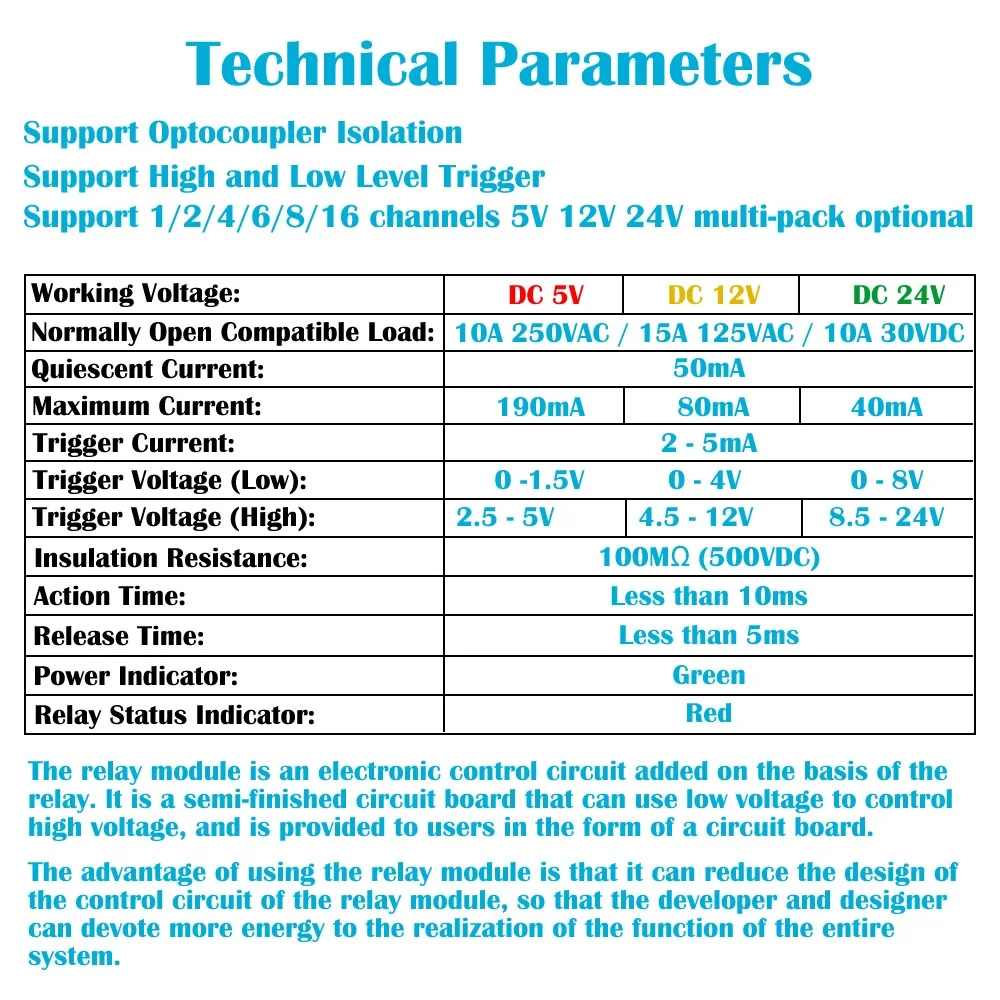

SPECIFICATIONS


Dissipation Power:

Feature 1: Relay Module Board Shield With Optocoupler

Feature 2: 12V Relay Module

Feature 3: 5V Relay Module

Feature 4: 24V Relay Module

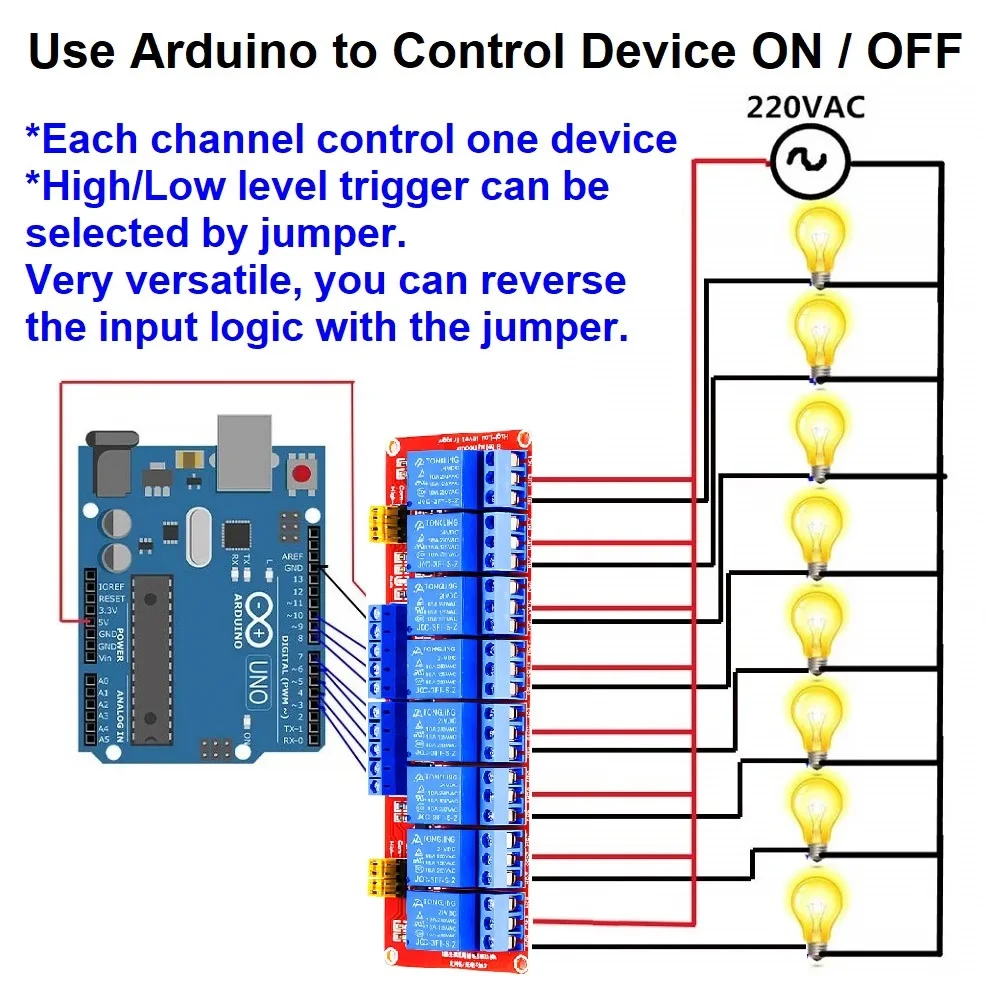

Feature 5: Support High and Low Level Trigger

Application: Computer

Brand Name: Elanzeme

Model Number: 1 2 4 6 8 Channel Relay Module

Package: SMD

Operating Temperature:

Origin: Mainland China

is_customized: Yes

Condition: New

Type: Relay

Supply Voltage: 5V 12V 24V

Choice: yes

semi_Choice: yes

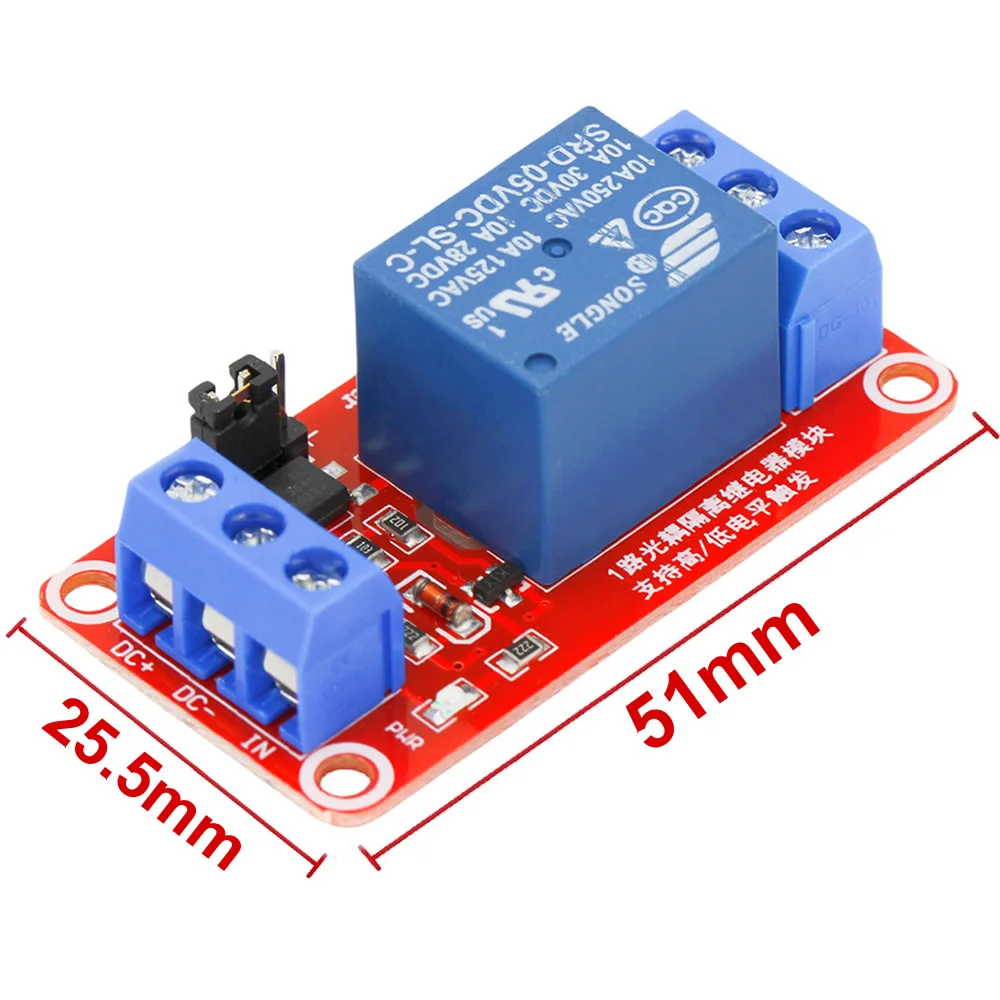

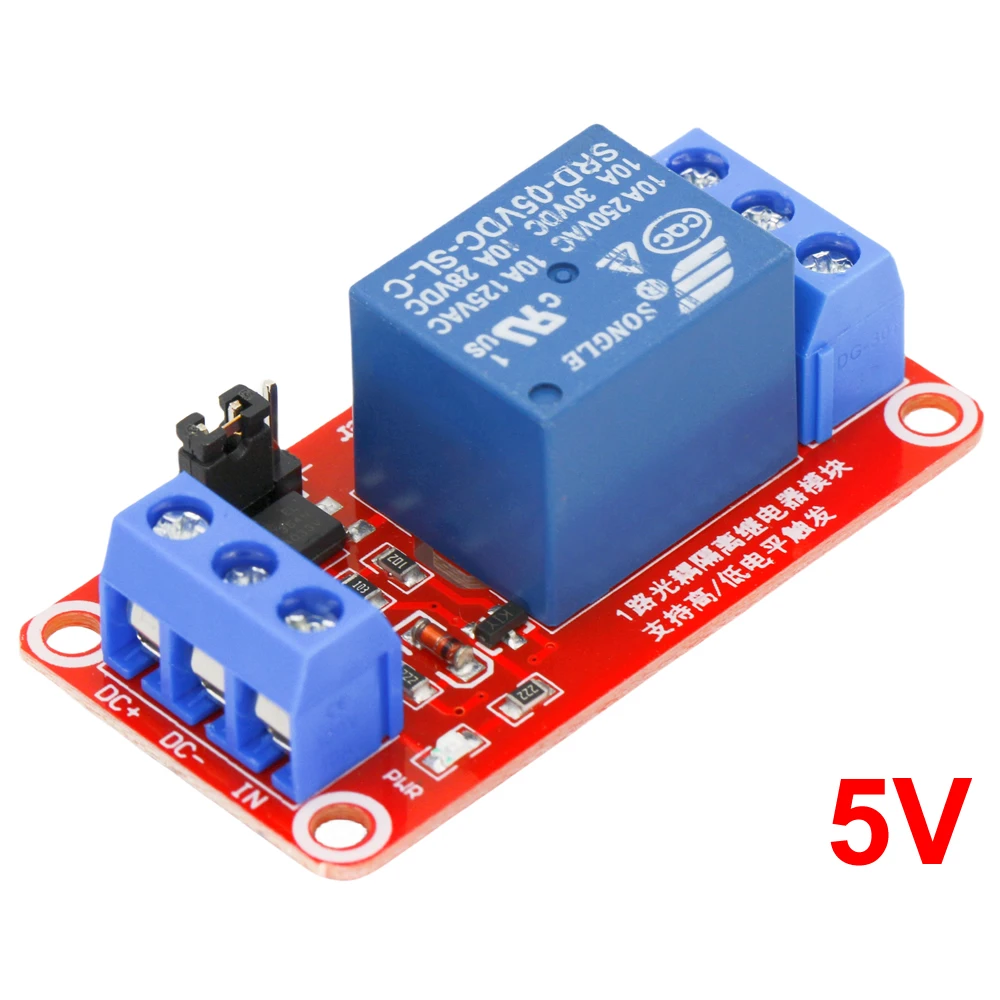

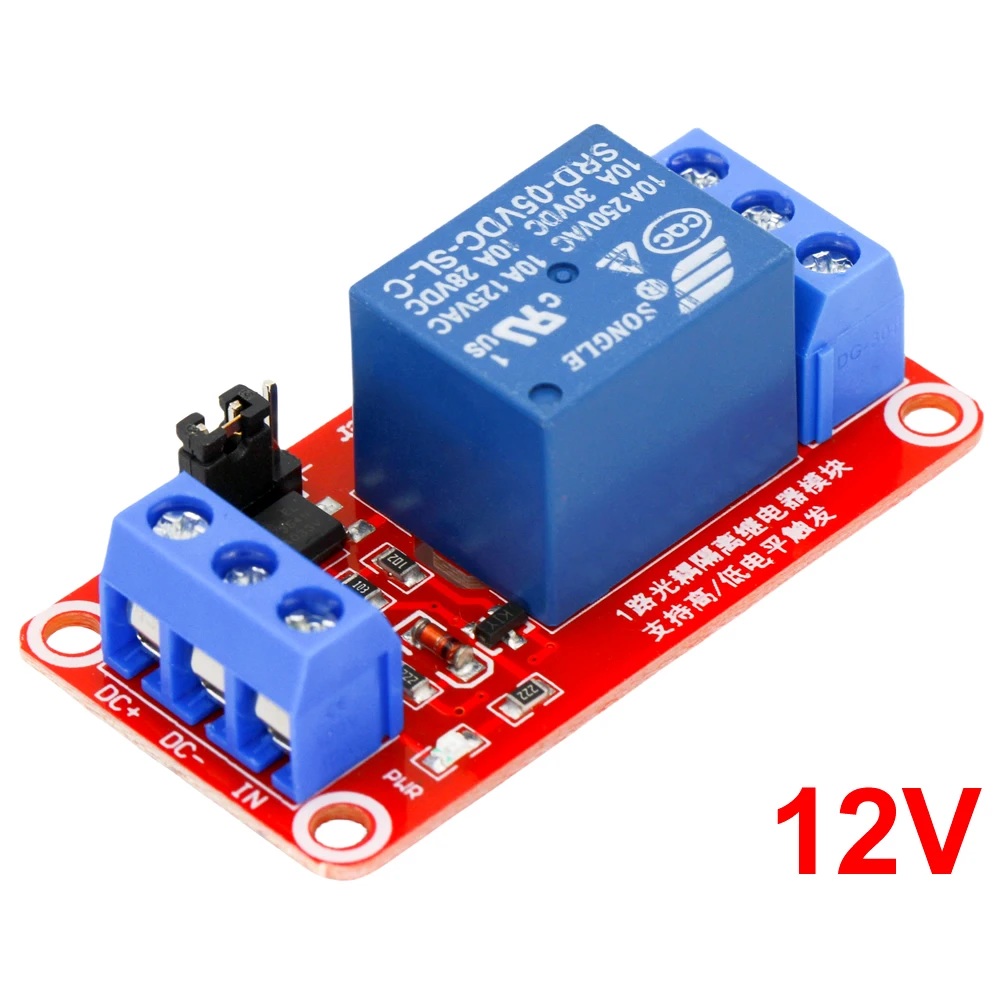

1 Channel Relay Module with Optocoupler
Description:
100%brand new and high quality
1-channel relay module, with photoelectric isolation
The module can be high or low by a jumper setting triggerWith power and relay action indicator
The module operating voltage 5v
The module uses genuine quality relay, normally open interfacesMaximum load:AC 250V/10A. DC 30V/10A

Module interface:
DC+: positive power supply (vcc)(5v
DC- negative power supply(GND)
IN: The control end the driving current should be more than 4ma
COM: The control of loop of earth wire

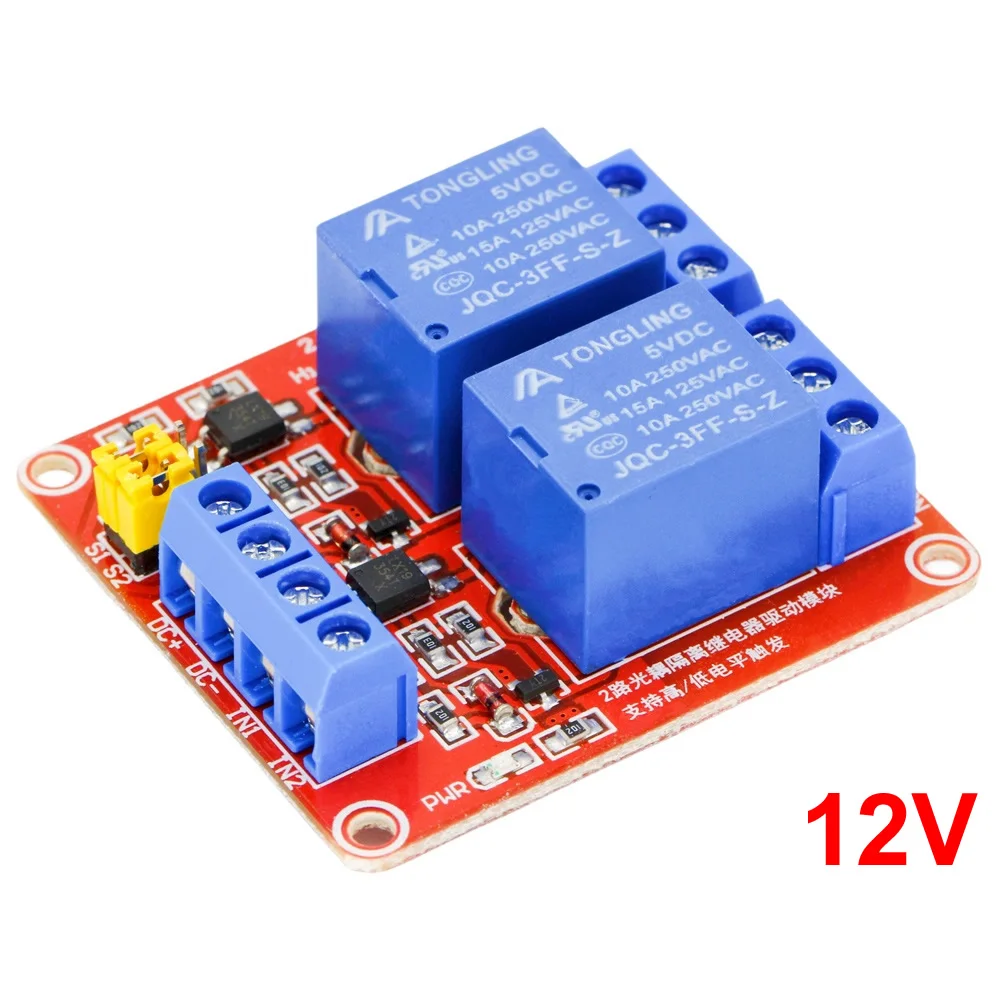

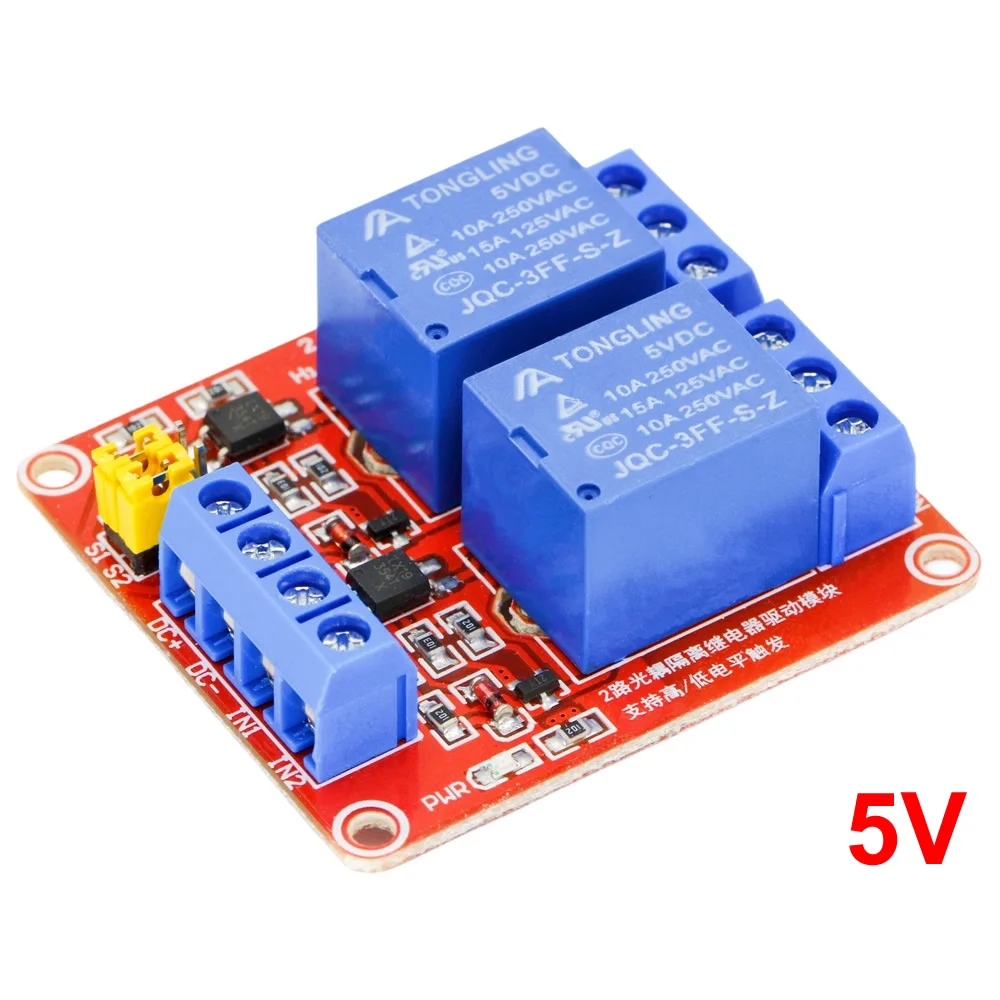

2 Channel Relay Module with Optocoupler
Description:
1.Maximum load:AC 250V/10A. DC30V/10A
2.SMD optocoupler isolation, strong driving ability, stable performance; trigger current 5ma
3.the module voltage 5V
4.each channel module can be set high or low triggered by jumper
5.fault-tolerant design, even if the control line is broken, the relay will not operate
6. power indicator(green),4 relay state indicator(red)
7.interface design user-friendly, all interfaces are available through the wiring terminal directconnectionleads, very convenient

Module port:
1.DC+: DC power supply positive
2.DC-: DC power supply negative
3.IN1: Channel 1 signal trigger terminal
4.IN2: Channel 2 signal trigger terminal
5.IN3: Channel 3 signal trigger termina
6.IN4:Channel 4 signal trigger terminal

Relay outputNcl:
1.NC1: Channel 1 relay normally closed pin
2.COM1: Channell relay common pin
3.NO1: Channel l relay normally opened pin
4.NC2: Channel 2 relay normally closed pin
5.COM2: Channel 2 relay common pin
6.NO2:Channel 2 relay normally opened pin
7.NC3: Channel 2 relay normally closed pin
8.COM3: Channel 2relay common pin
9.NO3: Channel 2 relay normally opened pin
10.NC4: Channel 2 relay normally closed pin.
11.COM4: Channel 2 relay common pin
12.NO4: Channel 2 relay normally opened pin

High And low Level Trigger Option:
1.S1: lt is option switch for channel l relay
2.S2: It is option switch for channel 2 relay
3.S3: it is option switch for channel 3 relay.
4.S4: It is option switch for channel 4 relay

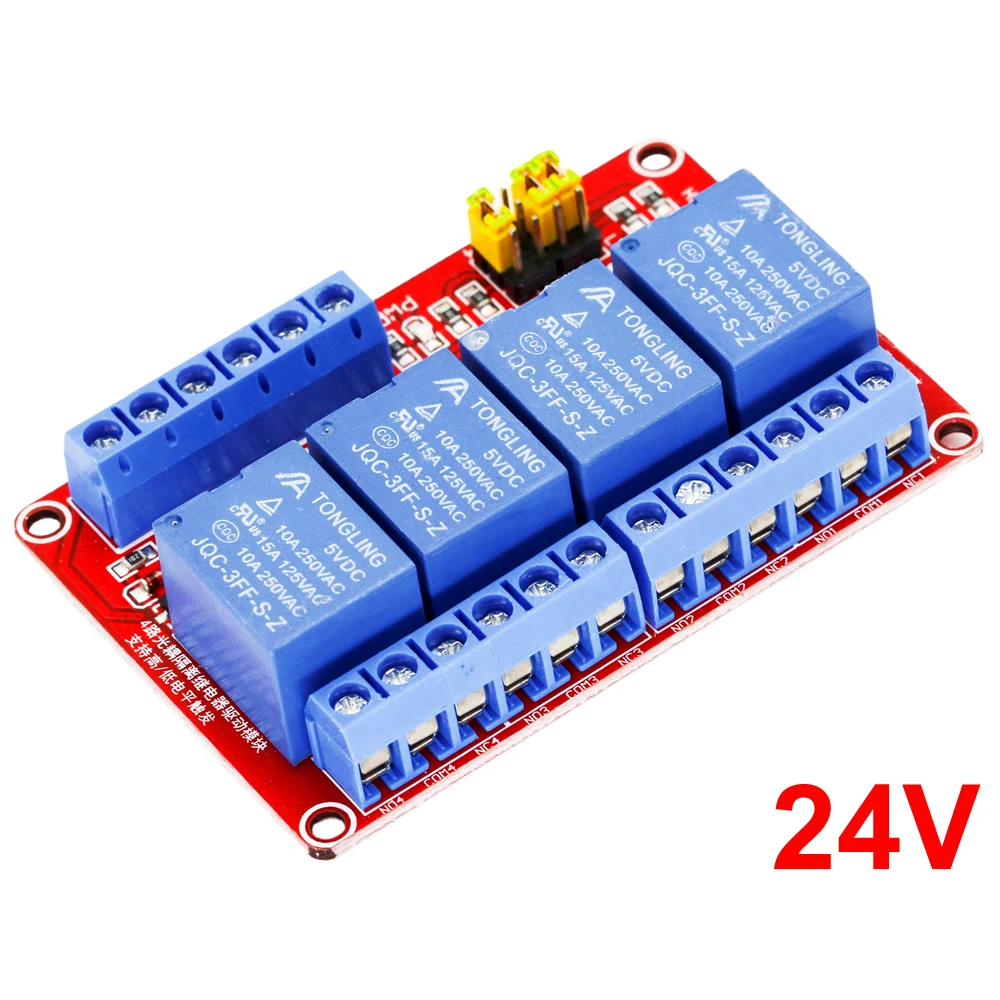

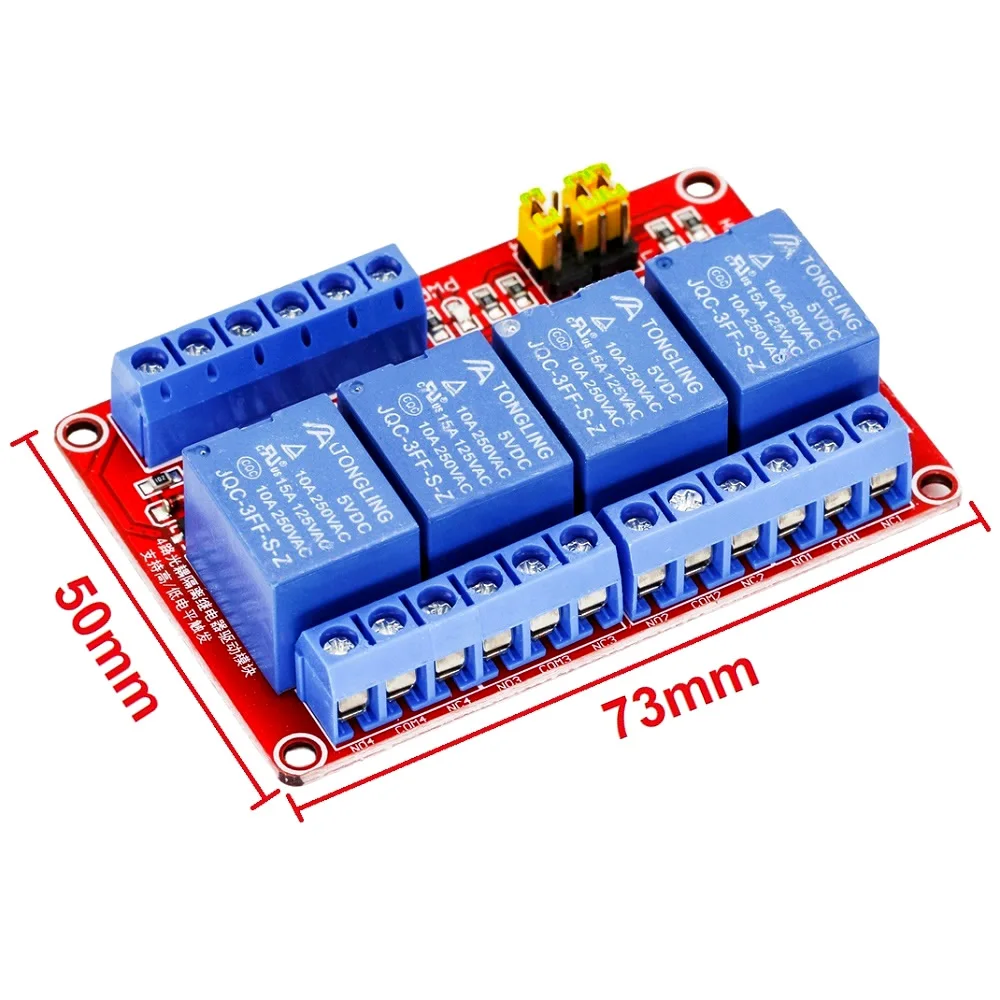

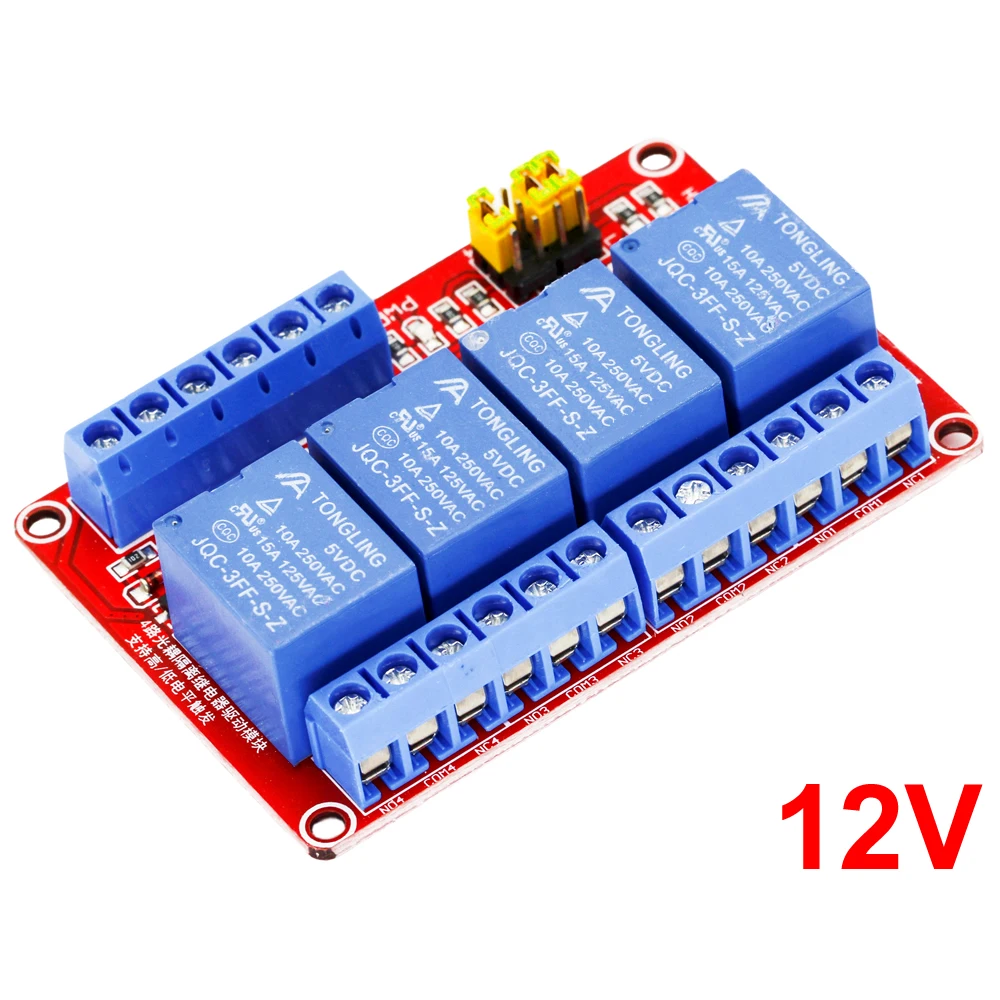

4 Channel Relay Module with Optocoupler
Description:
1.Maximum load:AC 250V/10A. DC30V/10A
2.SMD optocoupler isolation, strong driving ability, stable performance; trigger current 5ma
3.the module voltage 5V
4.each channel module can be set high or low triggered by jumper

5.fault-tolerant design, even if the control line is broken, the relay will not operate
6. power indicator(green), 4 relay state indicator(red)
7.interface design user-friendly, all interfaces are available through the wiring terminal directconnectionleads, very convenient

Module port:
1.DC+:DC power supply positive
2.DC-: DC power supply negative
3.IN1: Channel 1 signal trigger terminal
4.IN2: Channel 2 signal trigger terminal
5.IN3:Channel 3 signal trigger termina
6.IN4: Channel 4 signal trigger terminal

Relay outputNcl:
1.NC1: Channel 1 relay normally closed pin
2.COM1: Channel l relay common pin
3.NO1: Channel l relay normally opened pin
4.NC2: Channel 2 relay normally closed pin
5. COM2: Channel 2 relay common pin
6.NO2: Channel 2 relay normally opened pin
7.NC3: Channel 2 relay normally closed pin
8.COM3: Channel 2relay common pin
9.NO3: Channel 2 relay normally opened pin
10.NC4: Channel 2 relay normally closed pin
11.COM4: Channel 2 relay common pin
12.NO4: Channel 2 relay normally opened pin

High And low Level Trigger Option:
1.S1: It is option switch for channel l relay
2.S2: It is option switch for channel 2 relay
3.S3: it is option switch for channel 3 relay.
4.S4: It is option switch for channel 4 relay

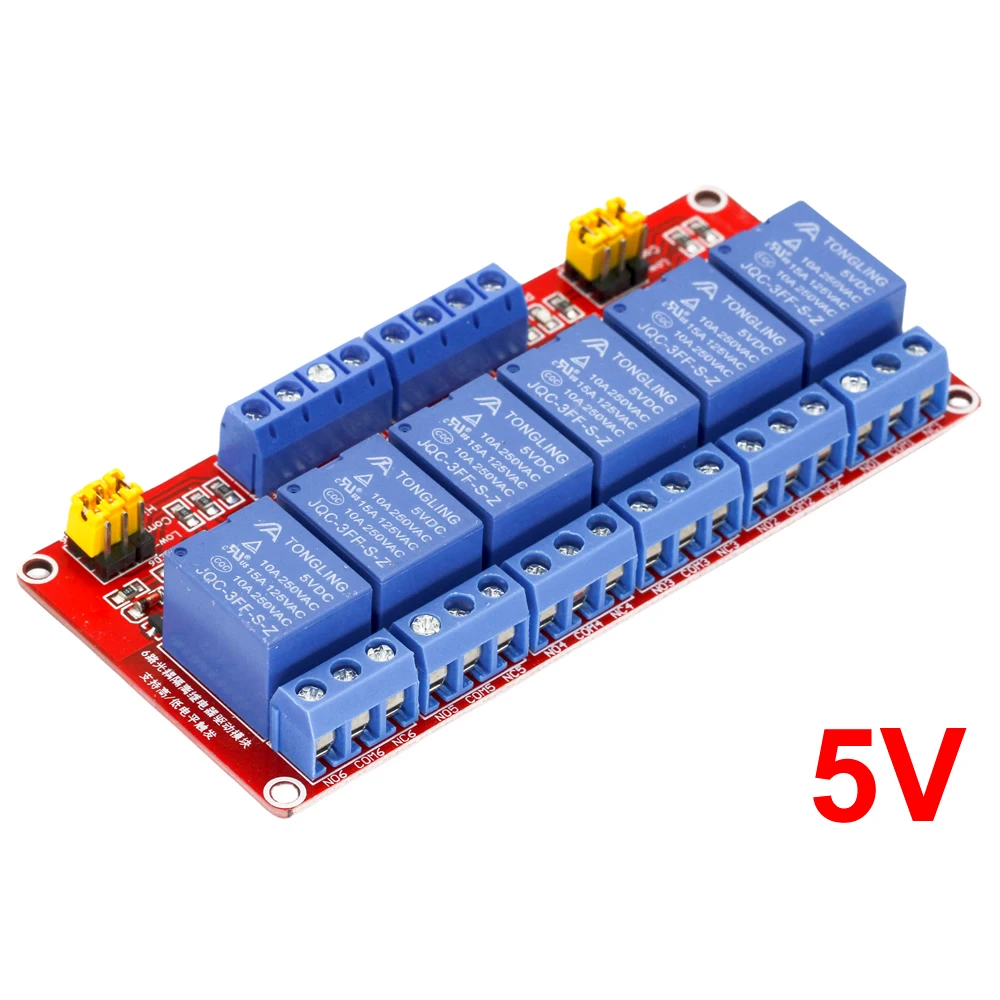

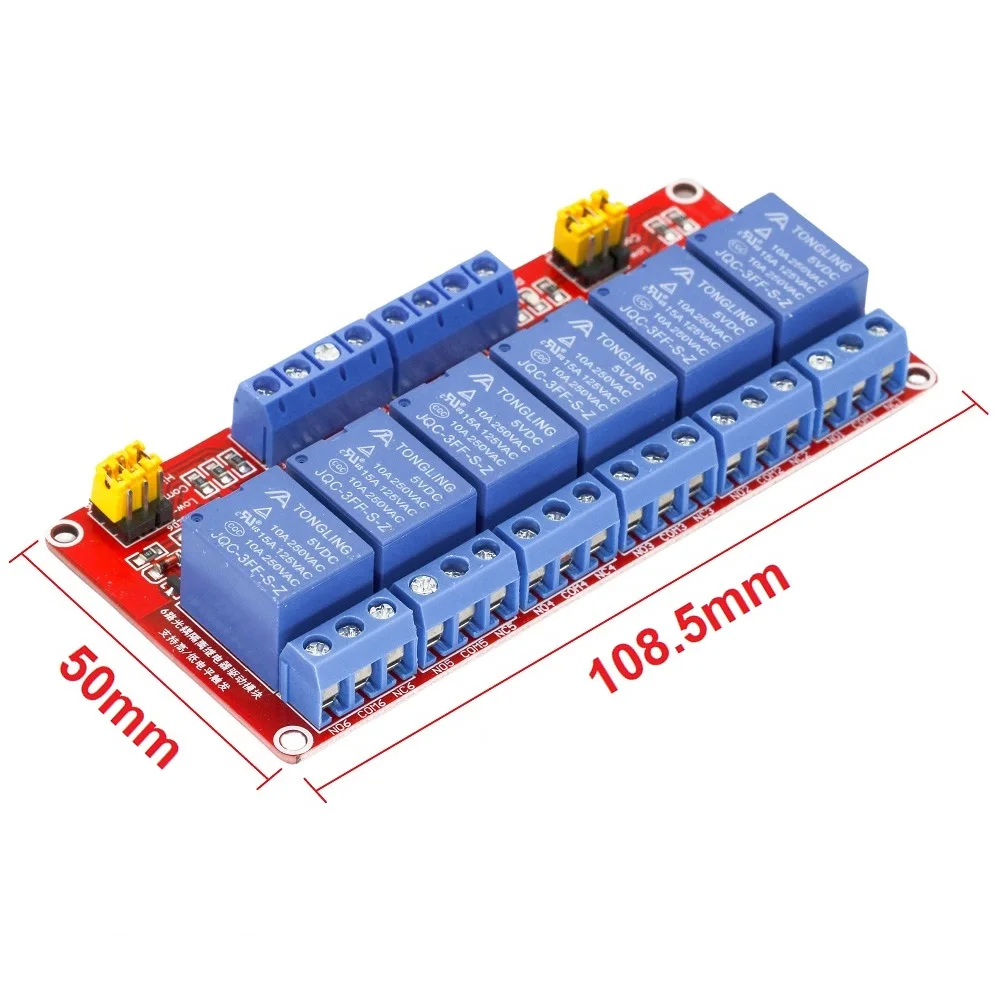

6 Channel Relay Module with Optocoupler
Features:
1.Dual trigger design, use a dedicated two-way driver lC.

2.Strong resist interference,use diode continued current to protect it.
3.The relay contact part adopts double cloth line for large current, safe andreliable.
4.The input and output are 5.08mm wiring terminals, wiring is moreconvenient, suitable for PLC control.
5.Input terminals can be arbitrarily set high and low level, the control modeis more flexible.
6.Equipped with fixing screw hole, easy to install.
7.Each way module can be set high or low triggered by jumper.

Specifications:
Material: Metal
Mounting bolts holes: 4
Holes diameter: 3mm
Voltage: 5V 12V
Maximum load : AC 250V/10A, DC 30V/10A

Interface:
VCC: Power end
GND: Ground strap
CTR1-CTR6: Signal input trigger

Outputs:
18 line interface, the interface can be directly connected to all leads , user-friendly.
NO1-NO6: normally open relay interfaces , relay before the vacant after thepull shorted with CoMi
COM1-COM6: Relay Common Interface
NC1-NC6: normally closed relay interface relay shorted with COM ago ,after the pull- vacant

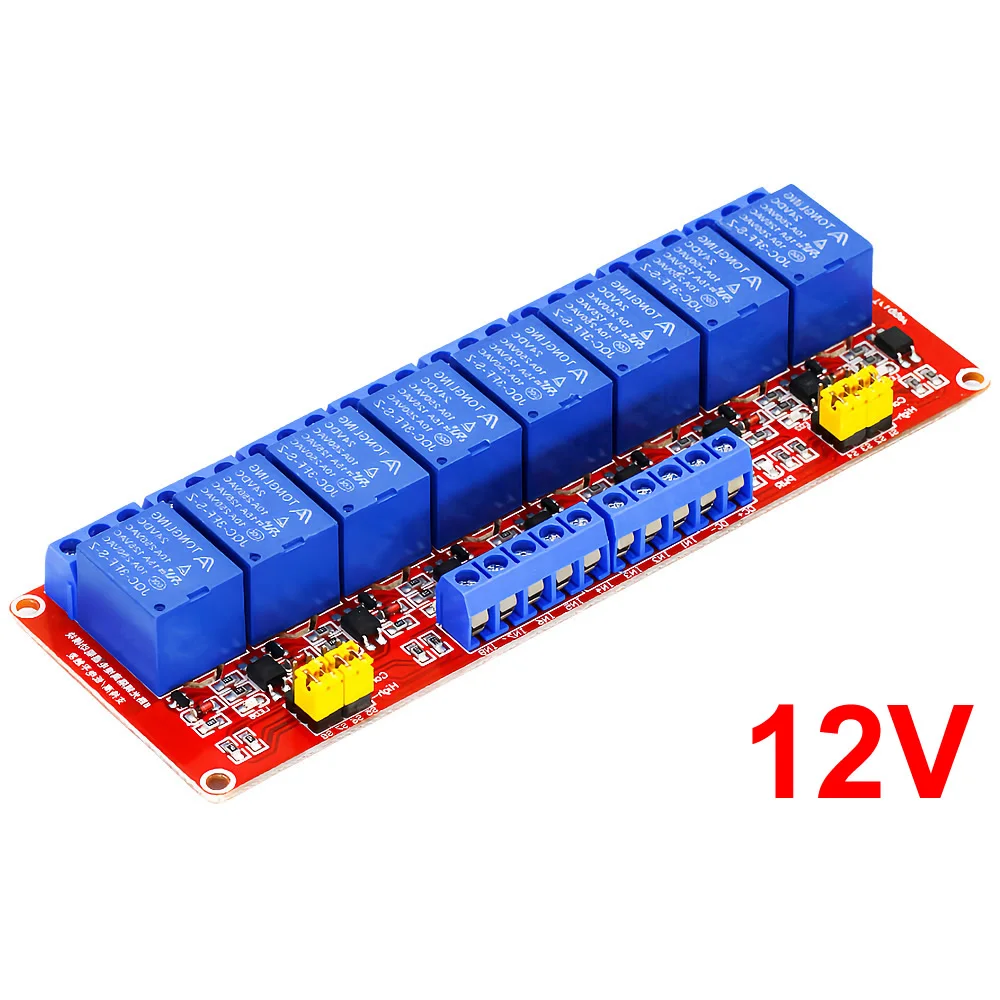

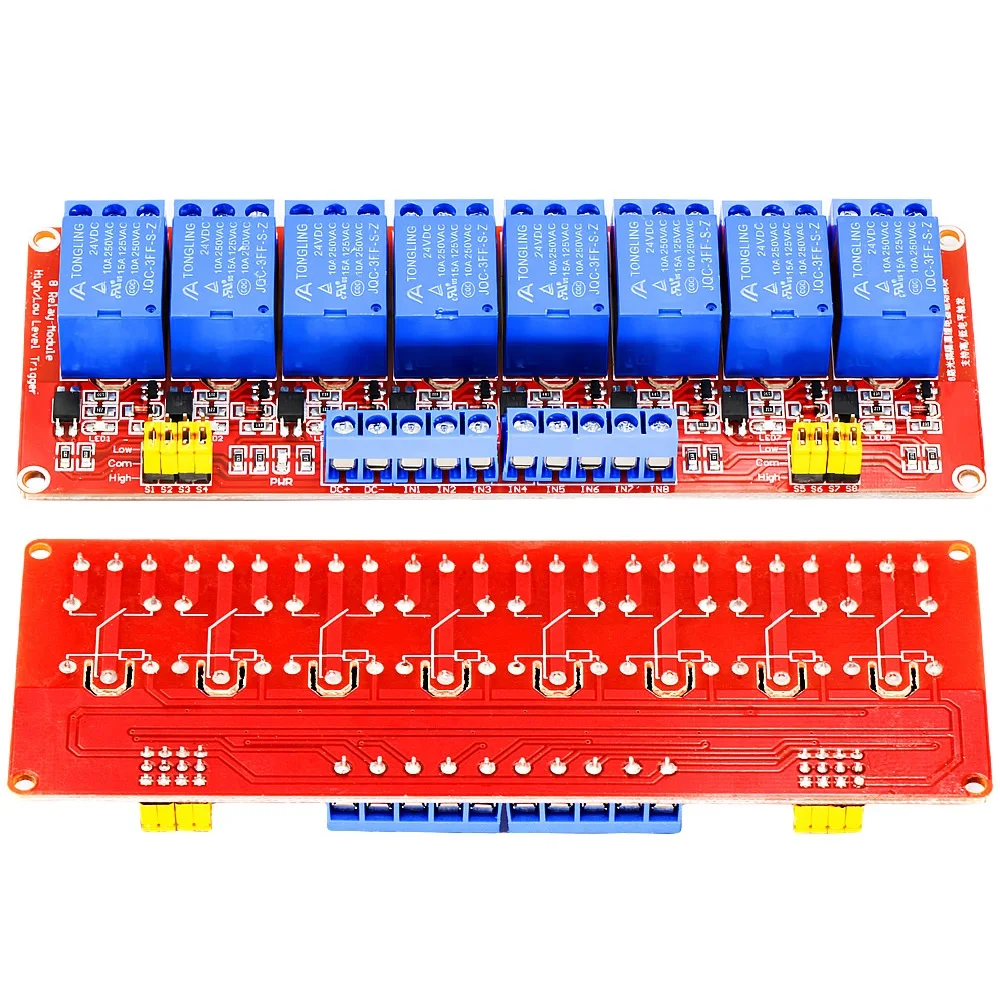

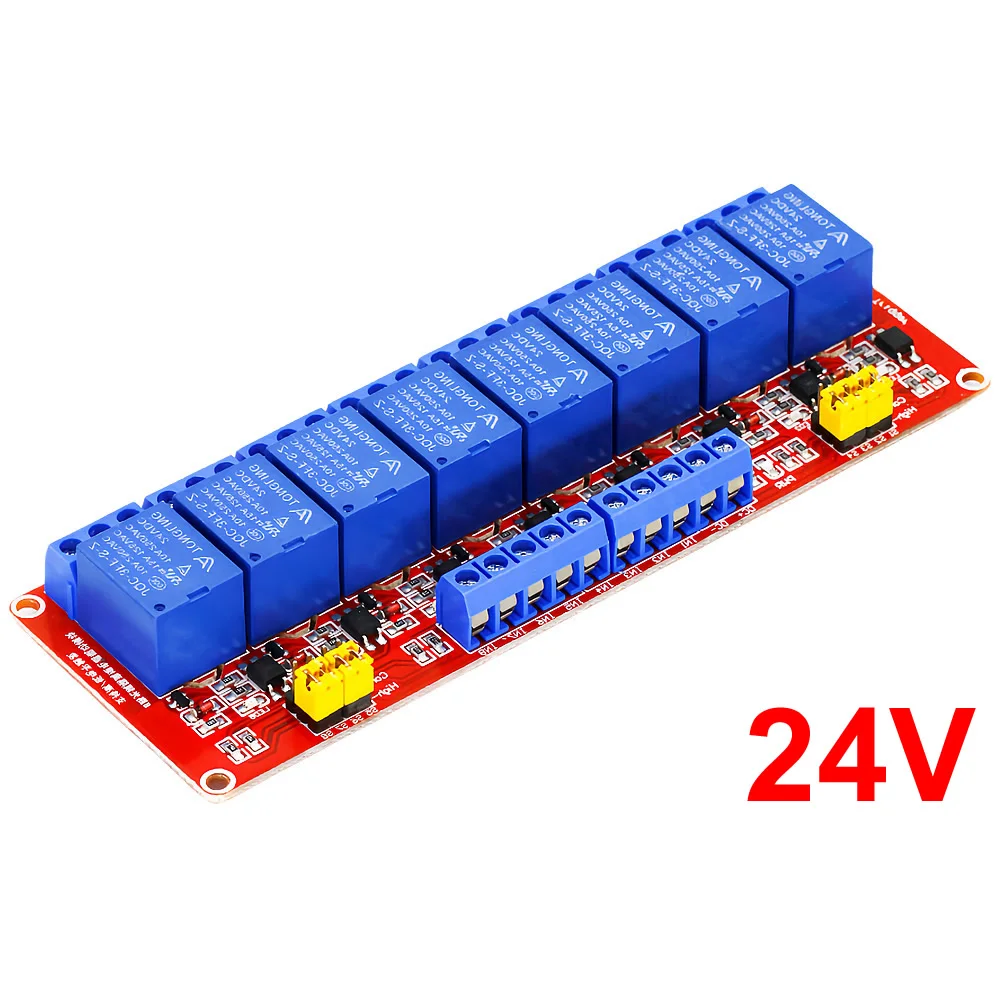

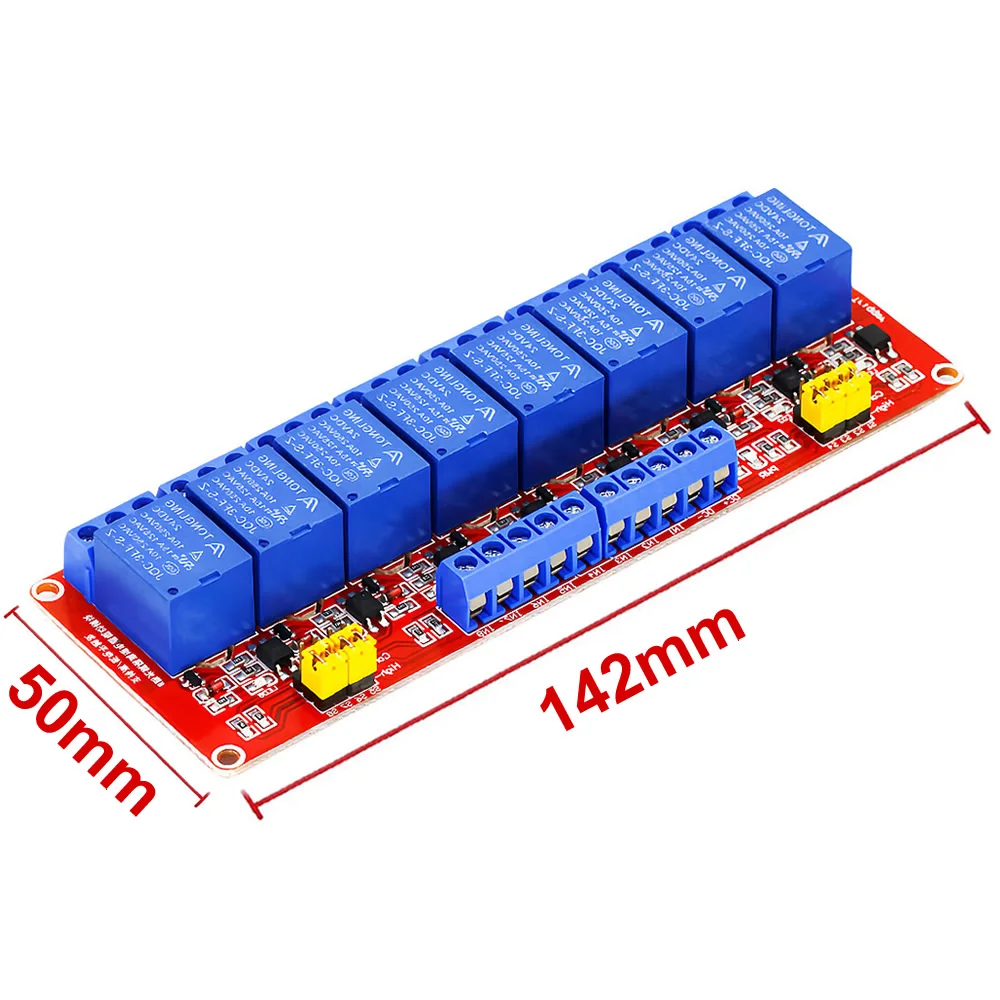

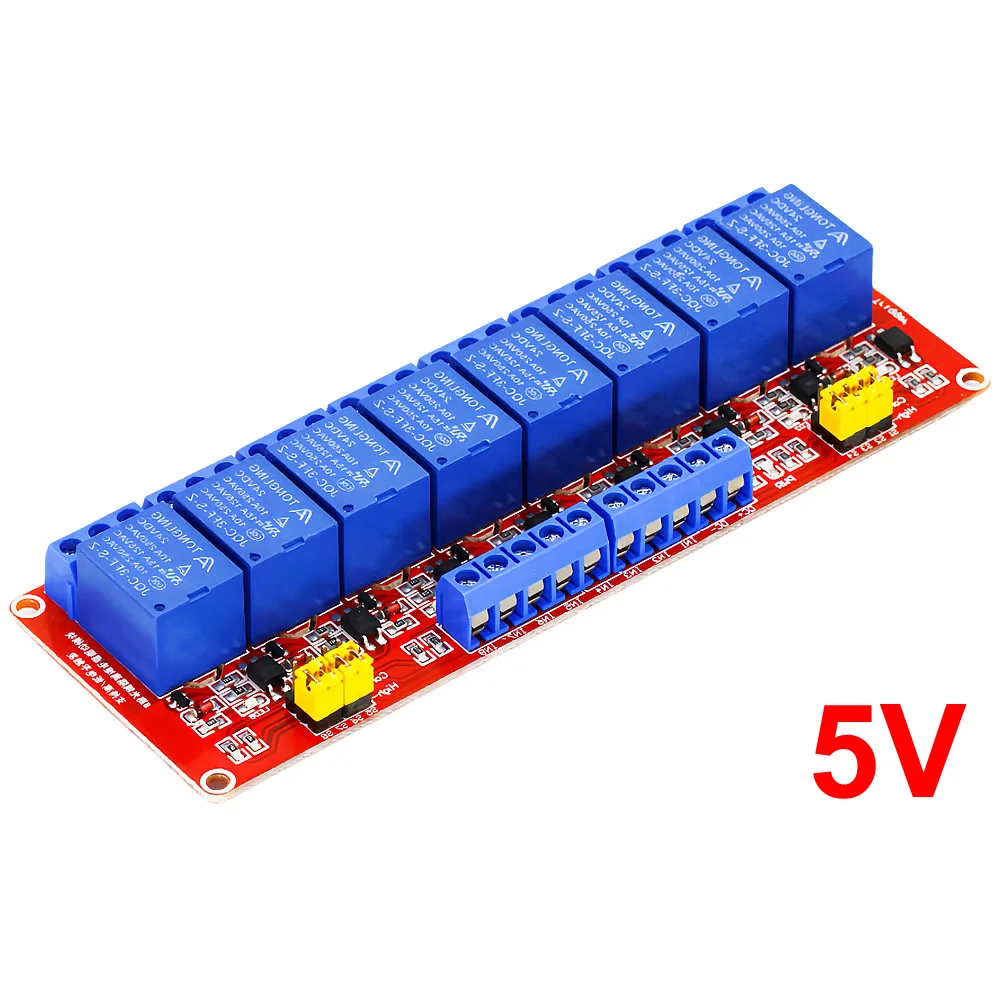

8 Channel Relay Module with Optocoupler
Features:
1.Dual trigger design, use a dedicated two-way driver lC.
2.Strong resist interference, use diode continued current to protect it.
3.The relay contact part adopts double cloth line for large current, safe andreliable.
4.The input and output are 5.08mm wiring terminals, wiring is moreconvenient, suitable for PLC control.
5.Input terminals can be arbitrarily set high and low level, the control modeis more flexible.
6.Equipped with fixing screw hole, easy to install.
7.Each way module can be set high or low triggered by jumper.

Specifications:
Material: Metal
Mounting bolts holes: 4
Holes diameter: 3mm
Voltage: 5V 12V
Maximum load : AC 250V/10A,DC 30V/10A

lnterface:
VCC: Power end
GND: Ground strap
CTR1-CTR8: Signal input trigger

Outputs:
24 line interface, the interface can be directly connected to all leads , user-friendly.
NO1-NO8: normally open relay interfaces , relay before the vacant after thepull shorted with COM
COM1-COM8: Relay Common Interface
NC1-NC8: normally closed relay interface relay shorted with COM ago ,after the pull- vacant

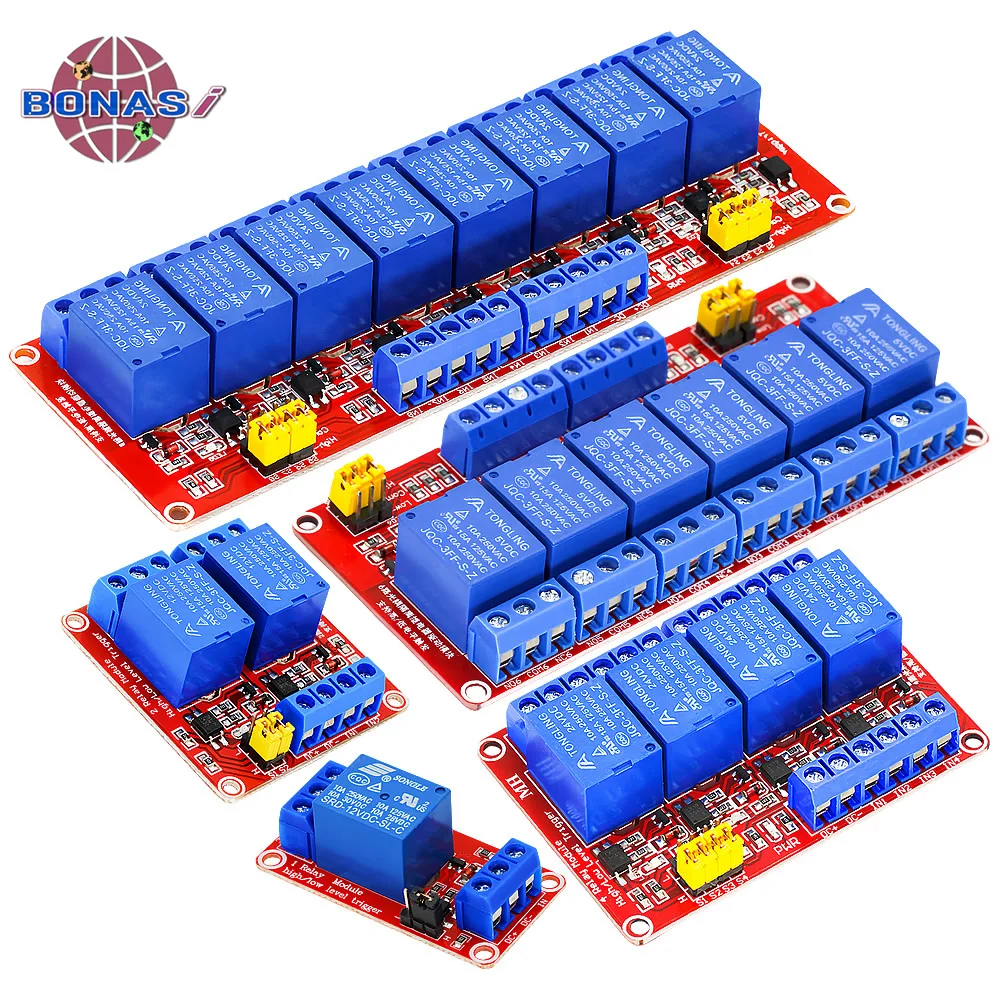

Relay Module 1 2 4 6 8 Channel 5V 12V 24V Relay Module Board with Optocoupler Support High and Low Level Trigger for Arduino

KSh425.00 KSh2,090.00Price range: KSh425.00 through KSh2,090.00

54 Items sold in last hour
28 People watching this product now!
  • Safe Payment Options
  • Secure privacy
  • Secure logistics
  • Purchase protection

Guaranteed Safe Checkout

0 reviews
0
0
0
0
0

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

SPECIFICATIONS


Dissipation Power:

Feature 1: Relay Module Board Shield With Optocoupler

Feature 2: 12V Relay Module

Feature 3: 5V Relay Module

Feature 4: 24V Relay Module

Feature 5: Support High and Low Level Trigger

Application: Computer

Brand Name: Elanzeme

Model Number: 1 2 4 6 8 Channel Relay Module

Package: SMD

Operating Temperature:

Origin: Mainland China

is_customized: Yes

Condition: New

Type: Relay

Supply Voltage: 5V 12V 24V

Choice: yes

semi_Choice: yes


1 Channel Relay Module with Optocoupler
Description:
100%brand new and high quality
1-channel relay module, with photoelectric isolation
The module can be high or low by a jumper setting triggerWith power and relay action indicator
The module operating voltage 5v
The module uses genuine quality relay, normally open interfacesMaximum load:AC 250V/10A. DC 30V/10A

Module interface:
DC+: positive power supply (vcc)(5v
DC- negative power supply(GND)
IN: The control end the driving current should be more than 4ma
COM: The control of loop of earth wire

2 Channel Relay Module with Optocoupler
Description:
1.Maximum load:AC 250V/10A. DC30V/10A
2.SMD optocoupler isolation, strong driving ability, stable performance; trigger current 5ma
3.the module voltage 5V
4.each channel module can be set high or low triggered by jumper
5.fault-tolerant design, even if the control line is broken, the relay will not operate
6. power indicator(green),4 relay state indicator(red)
7.interface design user-friendly, all interfaces are available through the wiring terminal directconnectionleads, very convenient

Module port:
1.DC+: DC power supply positive
2.DC-: DC power supply negative
3.IN1: Channel 1 signal trigger terminal
4.IN2: Channel 2 signal trigger terminal
5.IN3: Channel 3 signal trigger termina
6.IN4:Channel 4 signal trigger terminal

Relay outputNcl:
1.NC1: Channel 1 relay normally closed pin
2.COM1: Channell relay common pin
3.NO1: Channel l relay normally opened pin
4.NC2: Channel 2 relay normally closed pin
5.COM2: Channel 2 relay common pin
6.NO2:Channel 2 relay normally opened pin
7.NC3: Channel 2 relay normally closed pin
8.COM3: Channel 2relay common pin
9.NO3: Channel 2 relay normally opened pin
10.NC4: Channel 2 relay normally closed pin.
11.COM4: Channel 2 relay common pin
12.NO4: Channel 2 relay normally opened pin

High And low Level Trigger Option:
1.S1: lt is option switch for channel l relay
2.S2: It is option switch for channel 2 relay
3.S3: it is option switch for channel 3 relay.
4.S4: It is option switch for channel 4 relay


4 Channel Relay Module with Optocoupler
Description:
1.Maximum load:AC 250V/10A. DC30V/10A
2.SMD optocoupler isolation, strong driving ability, stable performance; trigger current 5ma
3.the module voltage 5V
4.each channel module can be set high or low triggered by jumper

5.fault-tolerant design, even if the control line is broken, the relay will not operate
6. power indicator(green), 4 relay state indicator(red)
7.interface design user-friendly, all interfaces are available through the wiring terminal directconnectionleads, very convenient

Module port:
1.DC+:DC power supply positive
2.DC-: DC power supply negative
3.IN1: Channel 1 signal trigger terminal
4.IN2: Channel 2 signal trigger terminal
5.IN3:Channel 3 signal trigger termina
6.IN4: Channel 4 signal trigger terminal

Relay outputNcl:
1.NC1: Channel 1 relay normally closed pin
2.COM1: Channel l relay common pin
3.NO1: Channel l relay normally opened pin
4.NC2: Channel 2 relay normally closed pin
5. COM2: Channel 2 relay common pin
6.NO2: Channel 2 relay normally opened pin
7.NC3: Channel 2 relay normally closed pin
8.COM3: Channel 2relay common pin
9.NO3: Channel 2 relay normally opened pin
10.NC4: Channel 2 relay normally closed pin
11.COM4: Channel 2 relay common pin
12.NO4: Channel 2 relay normally opened pin

High And low Level Trigger Option:
1.S1: It is option switch for channel l relay
2.S2: It is option switch for channel 2 relay
3.S3: it is option switch for channel 3 relay.
4.S4: It is option switch for channel 4 relay


6 Channel Relay Module with Optocoupler
Features:
1.Dual trigger design, use a dedicated two-way driver lC.

2.Strong resist interference,use diode continued current to protect it.
3.The relay contact part adopts double cloth line for large current, safe andreliable.
4.The input and output are 5.08mm wiring terminals, wiring is moreconvenient, suitable for PLC control.
5.Input terminals can be arbitrarily set high and low level, the control modeis more flexible.
6.Equipped with fixing screw hole, easy to install.
7.Each way module can be set high or low triggered by jumper.

Specifications:
Material: Metal
Mounting bolts holes: 4
Holes diameter: 3mm
Voltage: 5V 12V
Maximum load : AC 250V/10A, DC 30V/10A

Interface:
VCC: Power end
GND: Ground strap
CTR1-CTR6: Signal input trigger

Outputs:
18 line interface, the interface can be directly connected to all leads , user-friendly.
NO1-NO6: normally open relay interfaces , relay before the vacant after thepull shorted with CoMi
COM1-COM6: Relay Common Interface
NC1-NC6: normally closed relay interface relay shorted with COM ago ,after the pull- vacant

8 Channel Relay Module with Optocoupler
Features:
1.Dual trigger design, use a dedicated two-way driver lC.
2.Strong resist interference, use diode continued current to protect it.
3.The relay contact part adopts double cloth line for large current, safe andreliable.
4.The input and output are 5.08mm wiring terminals, wiring is moreconvenient, suitable for PLC control.
5.Input terminals can be arbitrarily set high and low level, the control modeis more flexible.
6.Equipped with fixing screw hole, easy to install.
7.Each way module can be set high or low triggered by jumper.

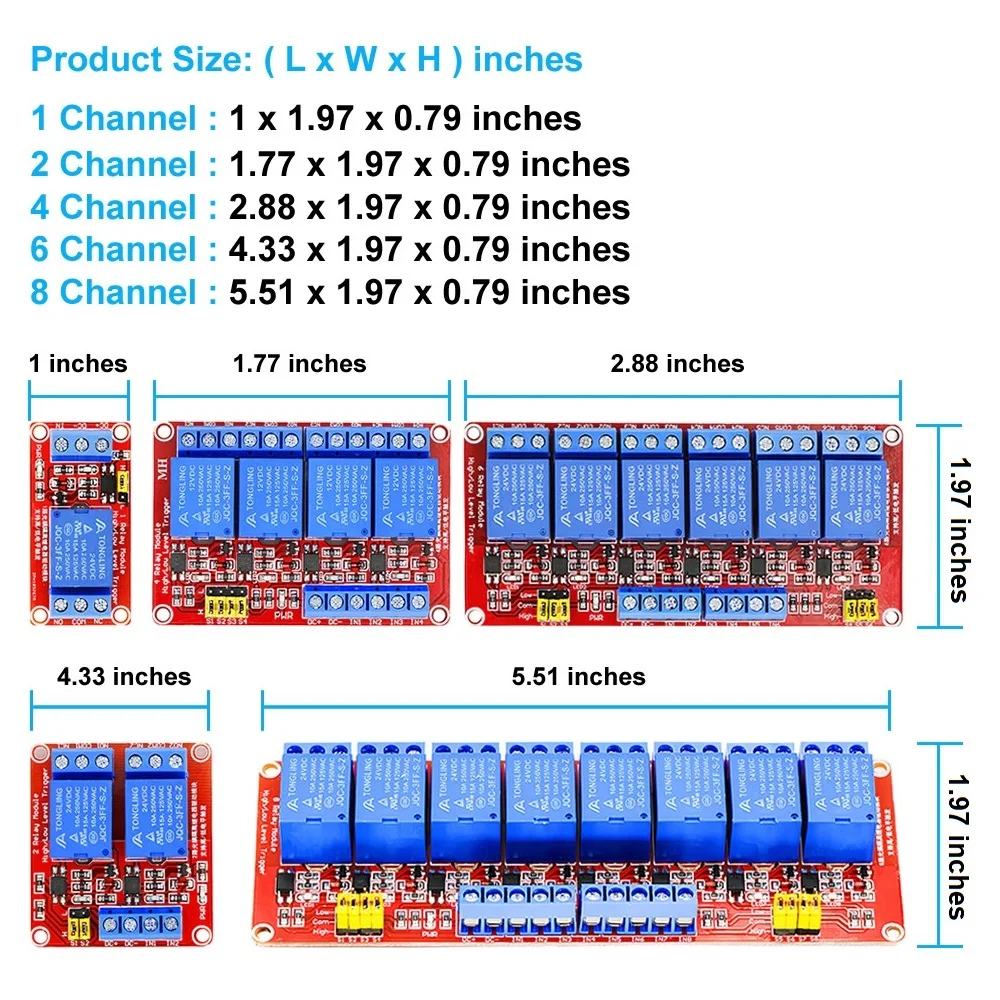

Specifications:
Material: Metal
Mounting bolts holes: 4
Holes diameter: 3mm
Voltage: 5V 12V
Maximum load : AC 250V/10A,DC 30V/10A

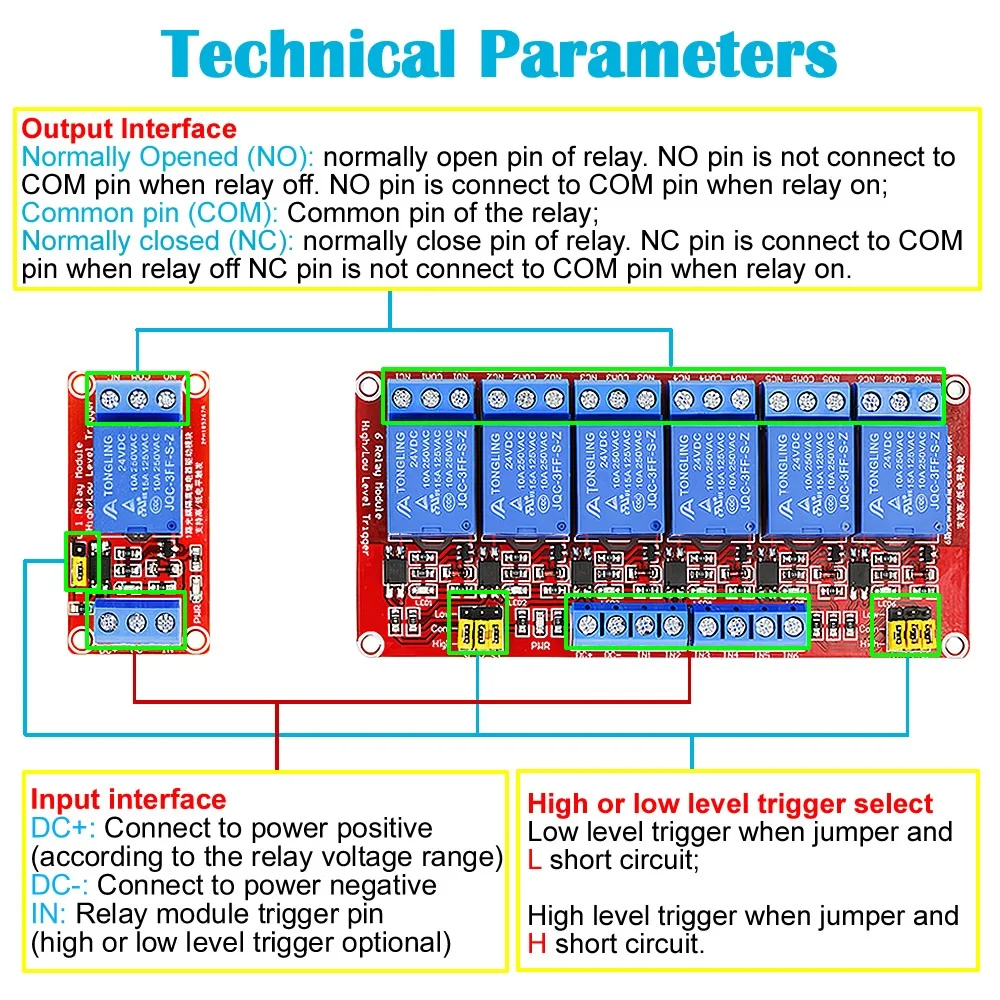

lnterface:
VCC: Power end
GND: Ground strap
CTR1-CTR8: Signal input trigger

Outputs:
24 line interface, the interface can be directly connected to all leads , user-friendly.
NO1-NO8: normally open relay interfaces , relay before the vacant after thepull shorted with COM
COM1-COM8: Relay Common Interface
NC1-NC8: normally closed relay interface relay shorted with COM ago ,after the pull- vacant

Features & Compatibility
