SPECIFICATIONS

Brand Name: liitokala

Quick charge: Yes

Data Transmission: HDMI-compatible

Hign-concerned Chemical: none

Intelligent Charge: Yes

Origin: Mainland China

Display screen: No

Type: Electric

Type: USB

Certification: CE

Certification: FCC

Certification: RoHS

Use: Standard Battery

Model Number: lii-500 402 202 100

Package: Yes

Output Interface: USB Output

Size:: 112mm*60mm*30mm

Weight:: 186g

Coutry of origina:: China

Input:: Micro USB DC 5V/2A

Output:: 1.4V , 4.2V+0.05V ,3.65+0.05V , 4.35+0.05V

USB output no-load voltage:: 4.90V-5.30V

Output protection voltage:: 3.0+0.1V

Note: Please see clearly when you buy the package that contains the product! ! Some products do not include a plug!

Do not check clearly buy the guests we refuse such disputes!

Thank you

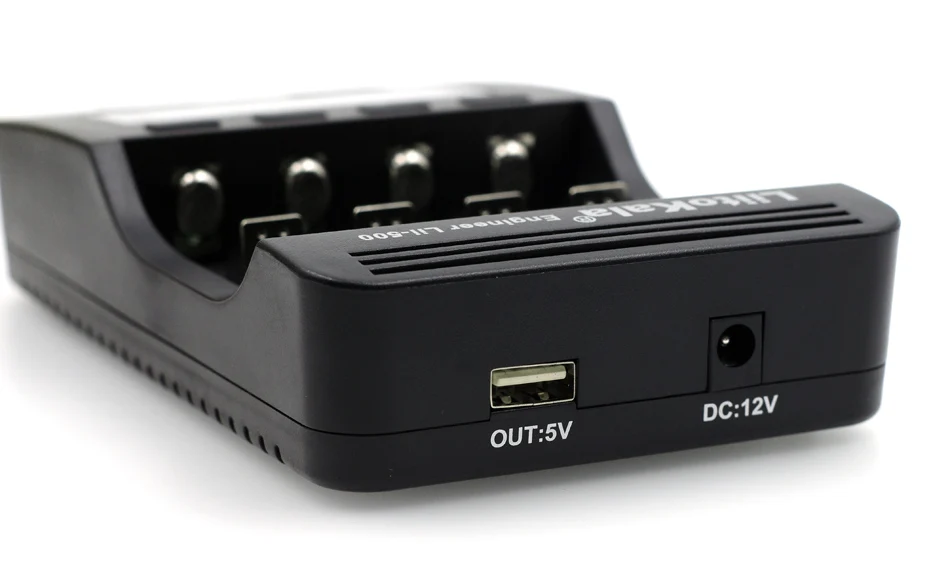

Shipping list: Liitokala lii-500 Charger 1PCS

Liitokala 2A Adapter 1PCS

Liitokala Car Charger 1PCS

Liitokala lii-500 Manual 1PCS

Lii-402 List:

1, Liitokala Lii402 whole package: Lii402 charger + USB cable + 5V 2A charging plug + manual

2, Liitokala Lii402 USB package: Lii402 charger + USB cable + manual(Note: This package does not include a plug!)

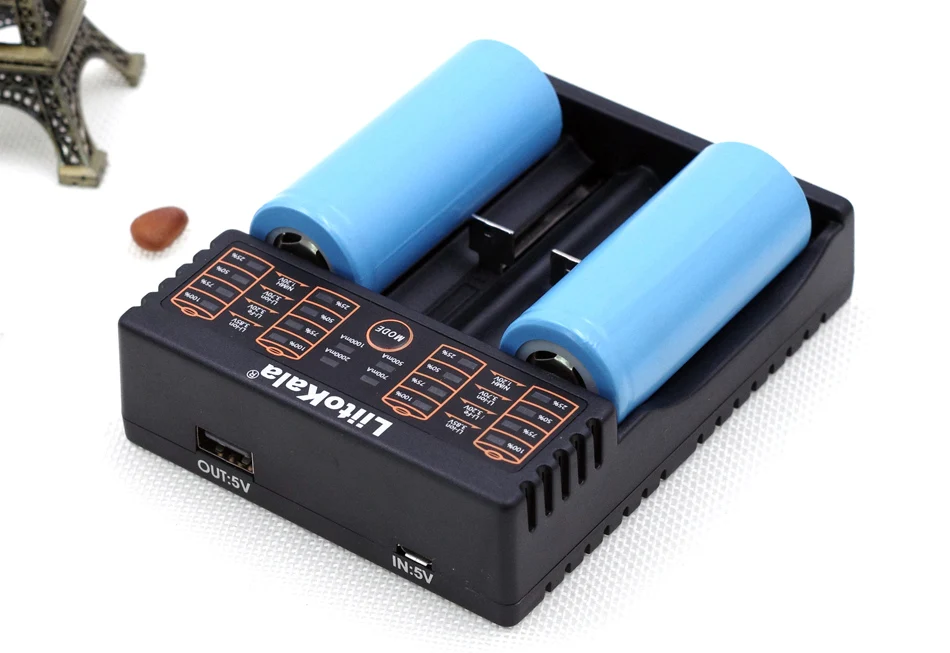

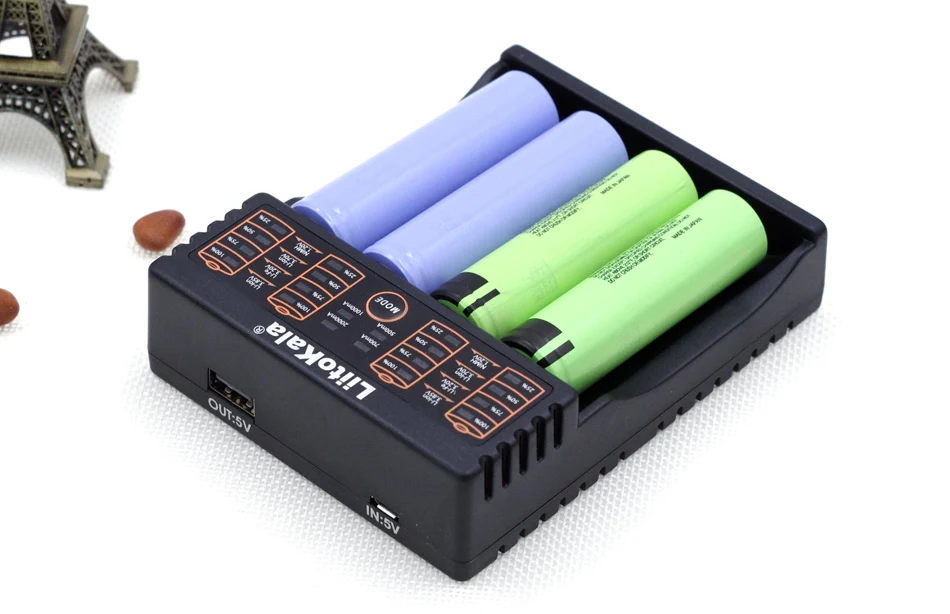

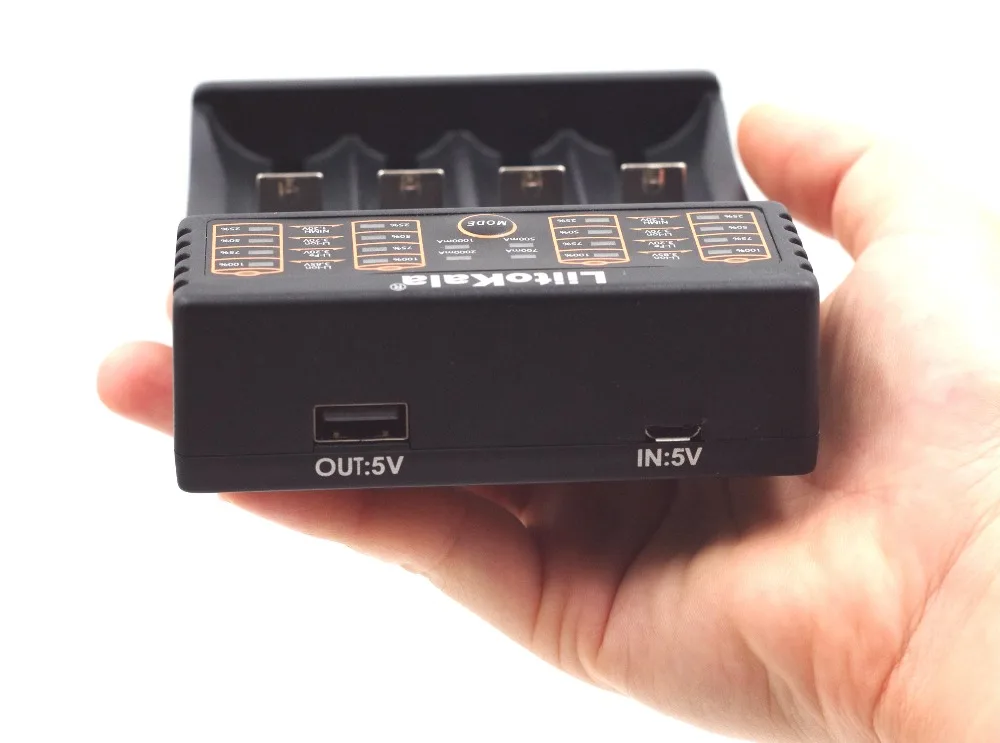

Lii-402 Charger Manual

A warning

1. This charger can only charge cylindrical lithium ion battery (3.7V, 3.8V), nickel hydrogen / nickel cadmium, lithium iron phosphate battery;

2. Before use, please carefully refer to the instructions, pay attention to the recommended rechargeable battery charging current, do not exceed the recommended current charge;

3. Charge with a 5V USB adapter (adapter current recommended 2A);

4. Charger charge and discharge may be fever, be careful not to burn;

5. When you stop using it, unplug the power and unplug the battery.

6. Can only be used in normal room.

7. This product test data is for reference only, the actual situation, please refer to professional equipment.

Second, the charger requirements and functions:

1. Micro USB DC 5V input, two separate charging and microcomputer management system

2. Available for 4 kinds of charging current selection (500mA / 700mA / 1000mA / 2000mA) 2000mA designated fourth slot.

3. LED display Charge status 25% 50% 75% 100% and battery type NiMH 1.2V Li-Fe 3.2V Li-ion 3.7V Li-ion 3.85V.

4. Can automatically identify lithium (Li-ion) batteries and nickel-metal hydride (Ni-MH) batteries, manually select the iron phosphate (Liepo4) battery and Li-ion 3.85V battery

5. 0V voltage activation function, 1.65-1.85V can not be charged (but there will be activated current trickle type charge).

6. Have over-charge, short circuit, intelligent identification of bad batteries and reverse battery detection protection.

7. Charging mode, constant current constant pressure

8. Using DC input, the charger power supply for the 5V-2A (Micro plug)

9. With standard 5V / 1000mA USB automatic identification output function,

Third, the key, LED and function description

1. Press the key: hold the selector key for 2 seconds to switch 500mA 700mA 1000mA 2000mA charge current at power on,

When charging the battery, press the select key to change the type of rechargeable battery. When the rechargeable battery type is selected (for example, 3.20V 3.85V) for 5 seconds, enter the charging state.

2. LED: charger connected to the 5V power supply, the charger all the LED moment all bright, if the battery is not put into the charging slot, 500mA (LED) indicator light is on, the other lights go out.

When the battery is detected, the four LED lights are all bright, 3.7LED light will flash, then press the button to select the type of battery you need to charge, if not selected, 5 seconds into the default identification of the battery charge, charge The indicator light flashes at the corresponding charge ratio. Press the button to check the charge type (no power indication) 5 seconds after the return to the state of charge. When not energized, insert the battery to view the power ratio (5 seconds after extinguishing, need to view again press)

USB output indication: When the USB output is detected, the power indicator turns on for 10 seconds and presses to check the power.

4. LED display reference picture

Fourth, the electrical technical parameters:

1, input power: Micro USB DC 5V / 2A

2, the output voltage: 1.42V

4.2V ± 0.05V,

3.65 ± 0.05V

4.35 ± 0.05V

3, the output current: 2000mA * 1 1000mA * 2 700mA * 3 500mA * 4

4, constant voltage charging, cut-off current: <100m A;

5, external power supply standby current: <15.0m A;

Five, USB output function:

1, USB port output no-load voltage: 4.90-5.30V; specify the fourth slot for the USB output

2, the output current: 1000 m A;

3, no-load current: <1m A;

4, load 1000m A current, the port output voltage: 4.75-5.25V;

5, stop output protection voltage: 3.0 ± 0.1V;

6, compatible batteries: Li-ion / IMR: 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440

Seven, charger size: 112mm × 90mm × 30mm (length / width / height)

Weight: 173g (+ micro line)

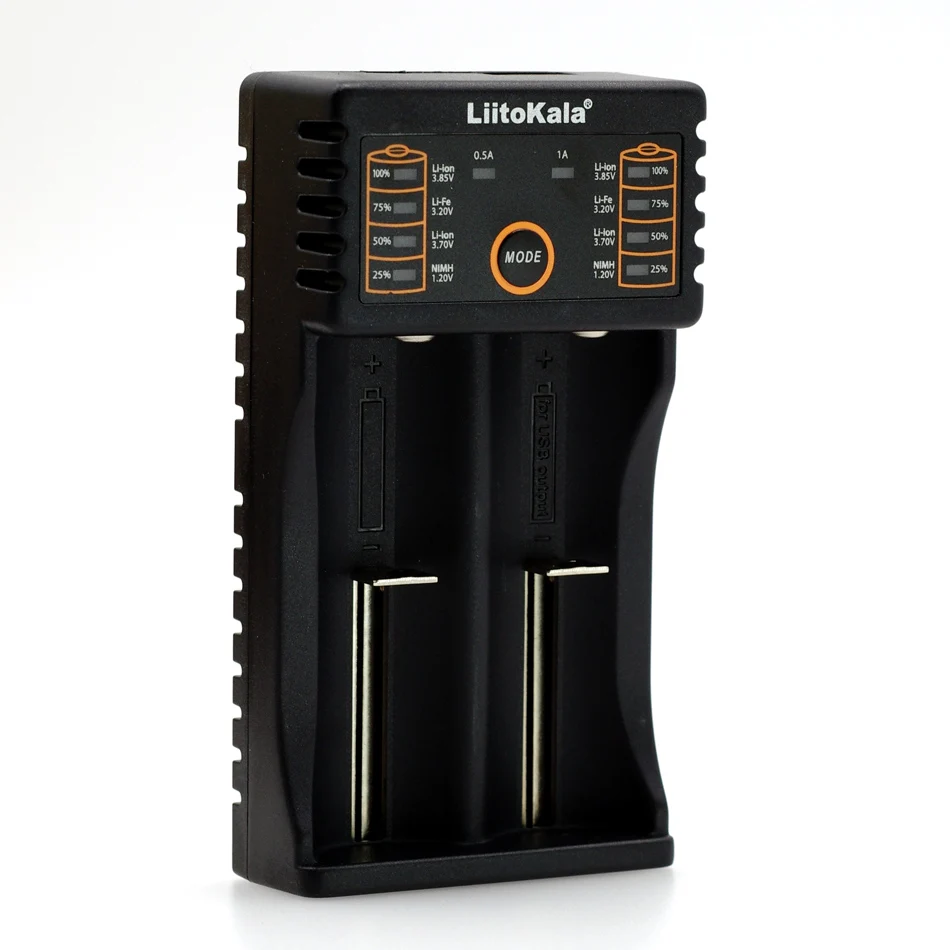

Lii-202 List:

1, Liitokala Lii202 package: Lii202 charger + USB cable + 5V 2A charging plug + manual

2, Liitokala Lii202 new packaging: Lii202 charger + USB cable + manual + new box (Note: This package does not include a plug!)

This device is designed for portable, flexible and multiple battery types. it can detect the battery type and charging the battery is automatically selected in accordance with the charging current. Built-in LED indicators to show charging status and 5 V / 100 mAh USB output function

warming:

this charge is only for charging the cylindrical lithium-ion (3.7, 3.8), Ni-Mh / Ni-Cd, LiFePO4 (Li-Ion) batteries.

Please read these instructions before use; pay attention to the recommended charging current, never choose the wrong charging current

when the charge with 5V USB AC adapter, 2A-current AC adapter recommended

Charger ma hot during operation for a long time, handle with care!

please cut off the electricity and remove the battery from the charger when charging is complete.

indoor condition only !!

data mapping Charger for reference only; please refer to professional instrumentation, if you need accurate data

2. Features and Specifications:

Micro USB DC 5V input, two independent slots and charging channels with built-in micro-computer control system to ensure high efficiency

Two charging current parameters (0.5A / 1.0A)

Four LED indicators show the charging status (25%, 50%, 75%, 100%), and also shows the battery type, if inserted into the battery (1.2 V Ni-Mh, 3.2 in Li-Fe, 3.7 in Li-Ion, 3.85 in li-ion)

automatically identify Li-Ion and Ni-Mh; But, you need to adjust the charging mode for LiFePO4 and 3.85 in the lithium-ion battery

it can actively 0 V battery, but the device does not charge a 1.65 V ~ 1.85 V batteries types.

built with excessive charging protection, over-discharge protection and protection of polar reverse. besides, it can detect a broken battery.

Charing mode: instantaneous current and voltage.

PERMANENT charging current: Operating voltage in the 5V-2A (Micro-connector)

Standard automatic 5 V / 1000 mAh USB output port

3. Select the button, LED and function.

MODE button:

click to select the type of battery when inserting the battery. it will begin to charge the battery after fixing the battery type (please noted that it will automatically identify Li-Ion and Ni-Mh, no need to choose manually)

press and hold for 2 seconds, when after connecting to power, it can be switched between charging current of 0.5A and 1.0A;

Led indicator

connect the charger to power, all LED indicators will be on when the battery is inserted after 5 seconds, the LED will be turned off except for the indicator 0.5A current

when the battery is inserted into the device, 4 LEDs will be turned on and 3.7 V LED indictors blink, then please press the MODE button to set the correct type of battery. it will begin to charge the battery after 5 seconds, and the LED indictors show the charging status.

Press the MODE button to show the type of battery (5 seconds) during charging and return to show the charging status

it can show the remaining battery power, if you put the battery in the charger (with no connection to the power charging)

USB output indicator: When the USB output is detected, the volume of the battery indicators will be on for 10 seconds and then off, press the button to show the battery volume speed.

4. Specification:

Input: Micro USB DC 5V / 2A

Output: 1.4, 4.2V ± 05, 3.65 ± 05, 4.35 ± 05

Output Current: 500/1000 mAh

constant voltage charging cut-off current: <100 mAh

Standby Current: <15 mAh

5. USB output function

USB output load voltage: 4.90 V-5.30

Output Current: 1000 mAh (1A)

Idle Current: <1 mAh

the output voltage of 4.75 V-5.25 V, when the current 1000 mAh

output over-voltage protection: 3.0 ± 1

6. Compatibility

li-ion / IMR: 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440

7. Size

112 mm × 60 mm × 30 mm / 86 g + 15 g USB cable

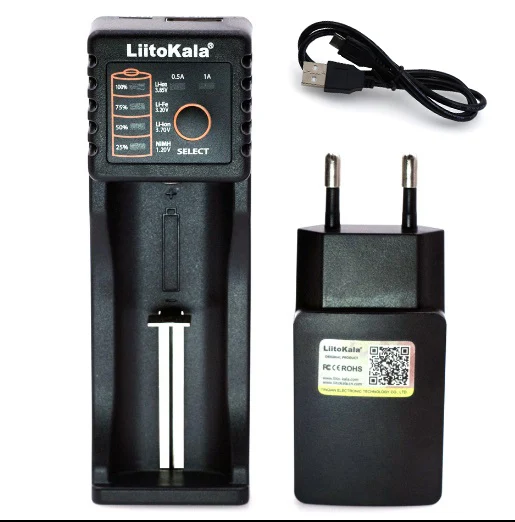

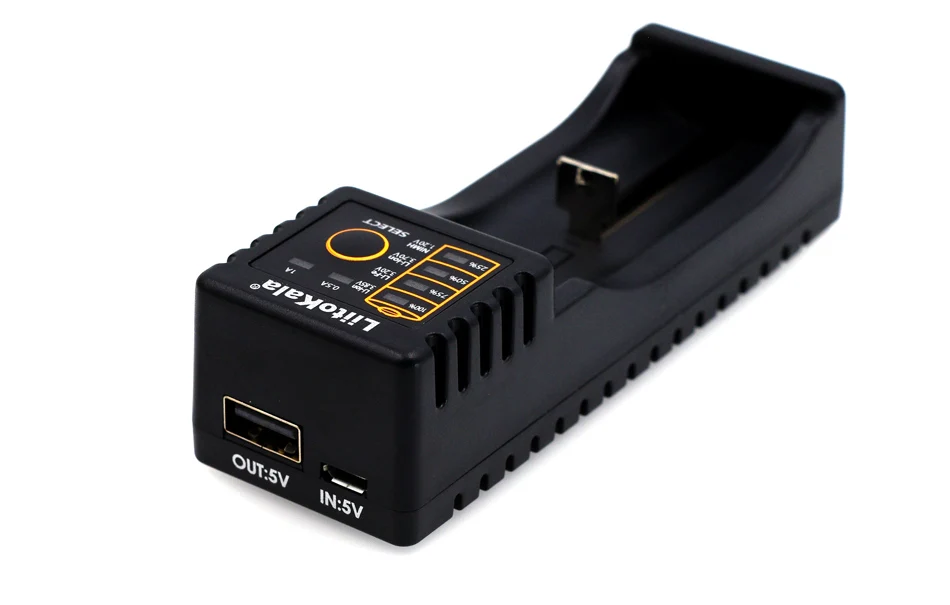

Lii-100 List:

1, Liitokala Lii100 package: Lii100 charger + USB cable + 5V 2A charging plug + manual

2, Liitokala Lii100 new packaging: Lii100 charger + USB cable + manual + new box(Note: This package does not include a plug!)

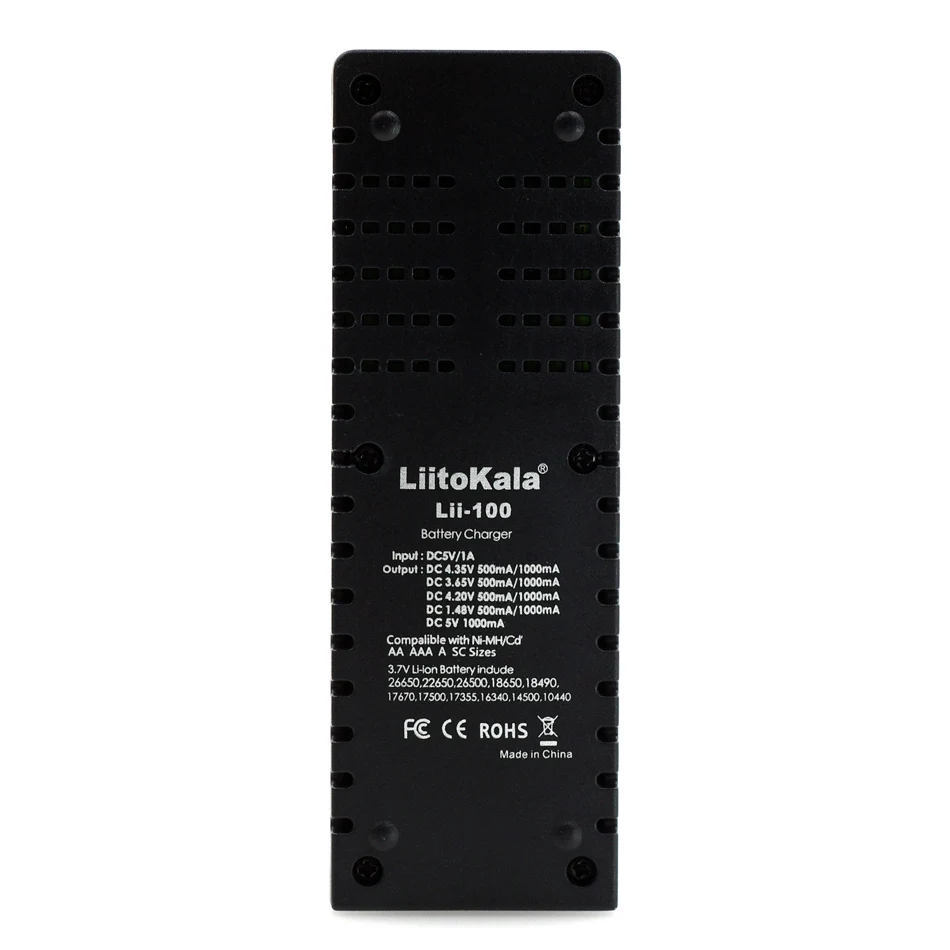

Lii-100 Charger Product description:

First, the charger requirements and functions:

1. Using micro USB DC 5V input, a single slot load and microcomputers management system Independent 2. Available two types of selection charge current (500mA / 1000mA)

3. LED displays the state of charge 25% 50% 75% 100% 1.2 V NiMH and Li-FE 3.0 V Li-ion 3.7 V Li-ion 3.85 V.

4. It can automatically identify the lithium battery (Li-ion) and nickel metal hydride batteries (Ni-MH) battery, manual processing iron phosphate selection (Liepo4) batteries and Li-Ion battery V 3.85 5. Ya 0 V driving voltage, 1.6-2.2 V does not charge (but donations will be activated current standard load flow). 6. Do not overload and over discharge, short circuit, intelligent recognition and detection Poor battery reversed protection battery. (Note: short circuit, bad battery, reversing the battery charger does not work, LED does not light)

7. Charge Mode, constant current constant voltage 8. Using a DC input power for the charger for V-1A work (Micro connector) 9. A paragraph: with standard 5 V / 1000 my USB automatic identification output,

B Section: No USB output function

secondly, a description of buttons, LEDs and function

1. Press: on, any time exercise the Select button for 2 seconds each 500mA charging current 1000mA converter;

battery-charging touch Select button to change the type of rechargeable battery, the battery must be recharged when the system chosen (eg, 3 V 3.85 V) 5/2 to enter the state of charge.

2. LED: charger plugged in 5 V power supply, charger, all LED full brightness instantly, without a battery in the charging slot, 500mA (LED) light, other lights go out.

upon detection of a battery, four LED lights flashing, then you can press the button to select the type of rechargeable batteries, if you do not choose, recognizing five seconds after entering the standard load, load indicator according the corresponding power ratio flash. press the button to see the standard price (no charge indicator) five seconds after the return to the state of charge. when not powered, insert the battery can be seen (5/2 and then off, you should see the press again)

USB output: when detected USB output power lights go after 10 seconds, the button can see the energy.

thirdly, electrical technical parameters:

1, input power: Micro USB DC 5v / 1a

2, the output voltage: 4.2 V ± 1% / 5V

3, the output current: 500mA / 1000mA

4, constant voltage charge, excluding current voltage <100 F;

5, the current external power source before: <15.0mA;

four USB output function:

1 voltage output load USB port: 4.90 to 5.30 V;

2, the output current: 1000mA

3 without load current: <1ma;

4, charging current 1,000, the door of the output voltage: 4.75 to 5.25 V;

5, protection voltage shutdown Output: 3.0 ± 0.1 V;

V. Compatible battery:

Li-ion / IMR: 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440

charger dimensions: 113mm × 38mm × 32mm (length / width / height)

weight 86 g (without battery, power cord)

Lii-S1 List:

1, Liitokala LiiS1 whole package: LiiS1 charger + USB cable + 5V 1A charging plug + manual

2, Liitokala LiiS1 new packaging: LiiS1 charger + USB cable + manual + new box(Note: This package does not include a plug!)

Liitokala Separate charging plug:

EU plug x1

5V 2A USB head instructions

Input voltage: 100 ~ 240V 50 / 60HZ 0.3A (AC) Output voltage: 5V (DC) Output current: 2000MA Output socket: USB (standard) Output voltage accuracy: ± 0.3% (no load) Wide input range, high voltage accuracy Built-in IC program, can play the role of overload protection, please rest assured that use. Product performance characteristics: 1. Product built-in import management chip; 2. Constant current / constant voltage / constant temperature check mode charging, so that the charging current to maximize; 3 can activate the depth of discharge of the battery and reduce power consumption, the battery voltage Low when the use of low current pre-charge mode; 4. Power-down automatically enter the low-power mode of sleep mode charge. Features: 1, the charger for the USB output interface, can be used for mobile phone tablet computer equipment without interfering with each other 2 , The charger USB is 2A, to adapt to a wider range of electronic products 3, the charger shell for the ABS fire environmental protection materials, the use of smooth design, effectively prevent scratches to ensure that the beautiful appearance of the product 4, the charger built IC control protection circuit, over-voltage and over-current protection, the maximum protection of charging security, high efficiency, fast 5, versatile input design, continuous output voltage, built-in anti-electromagnetic interference filter, pay attention to your charge and use your Love machine; product color: (black white) color optional

Packing: PC plastic bag in bulk, each box 100 per carton 500 (can be customized single independent packaging) Warranty: 12 months Use: Insert the product with a USB cable to connect the phone or other digital devices can be used;5V2Ausb interface Universal Description: USB standard interface for a variety of digital products such as matching fast charge. Special Note: This product has overcharge, overcurrent protection function, according to the size of the battery capacity, charging time length, charging, the battery charger shell is a normal temperature rise is normal, please do not put the poor battery into the charge, so as not to damage charger.
