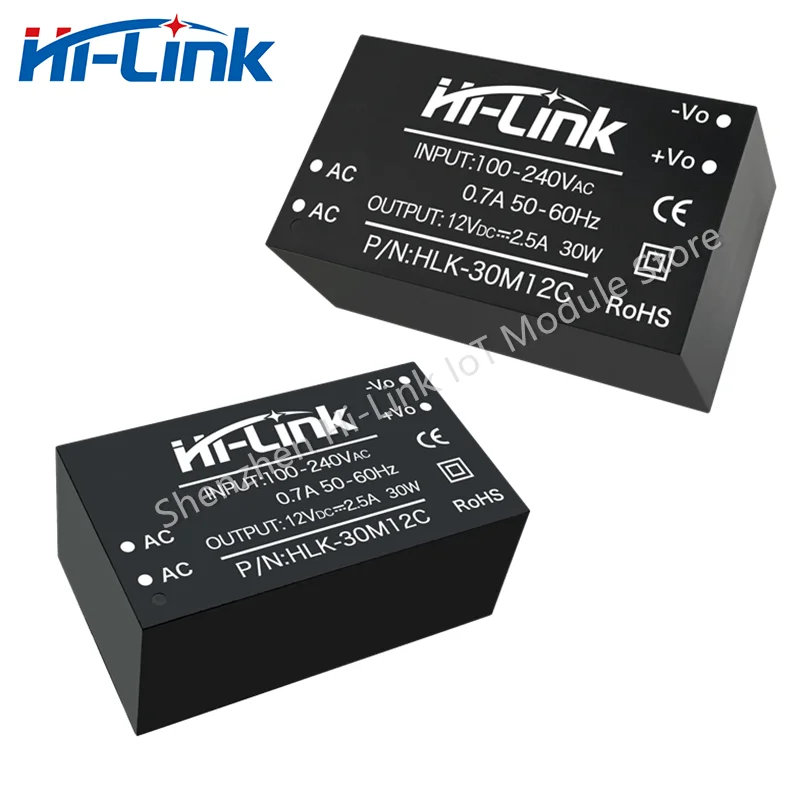

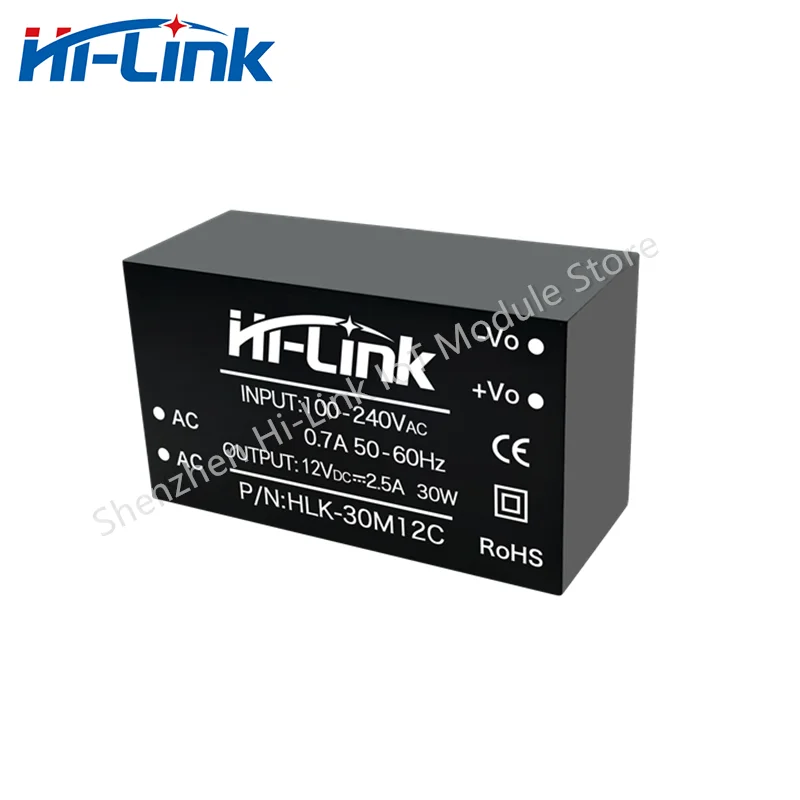

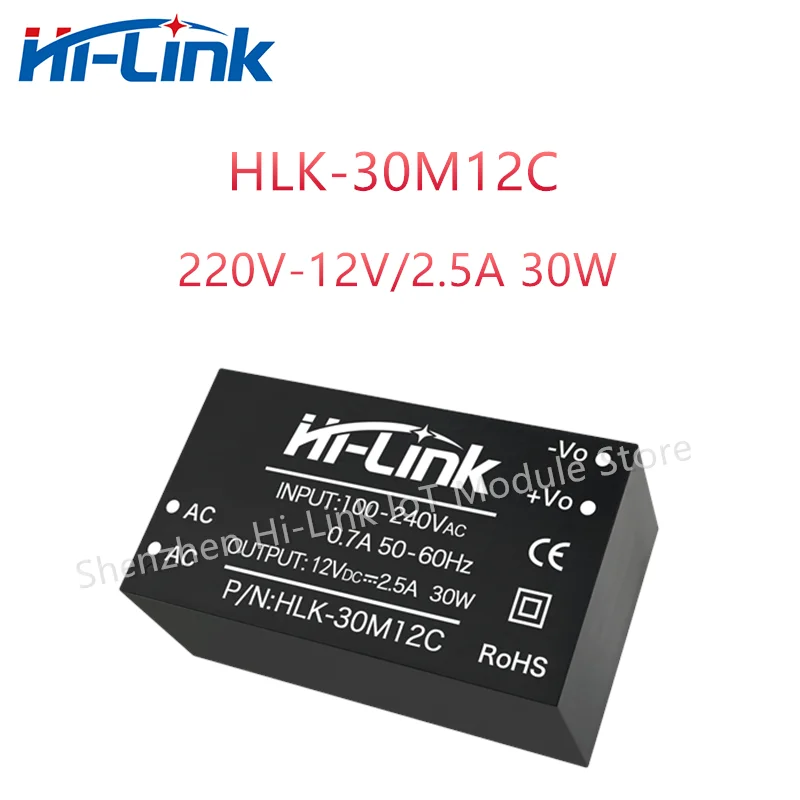

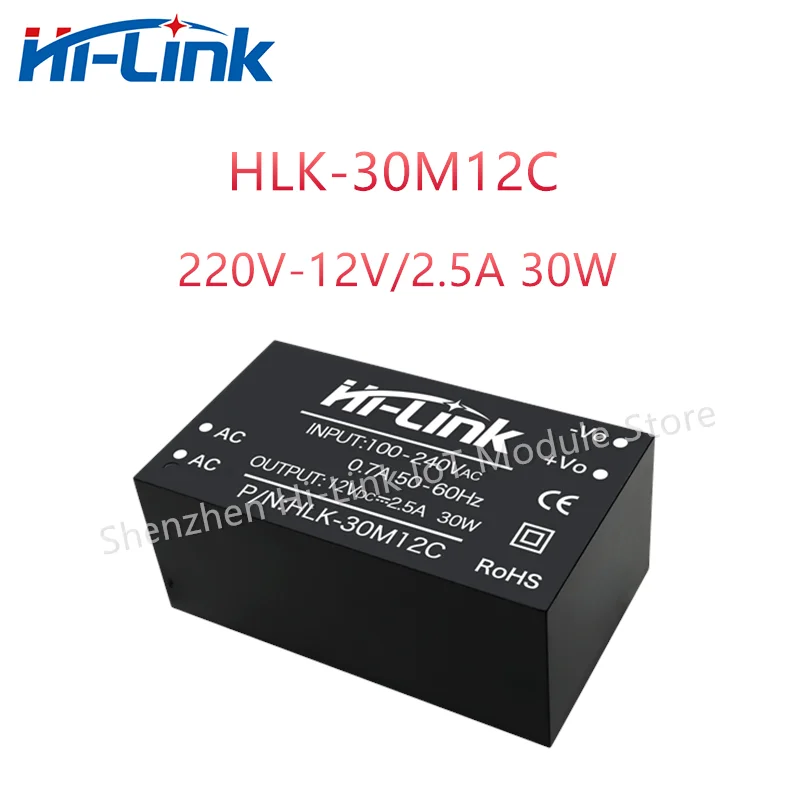

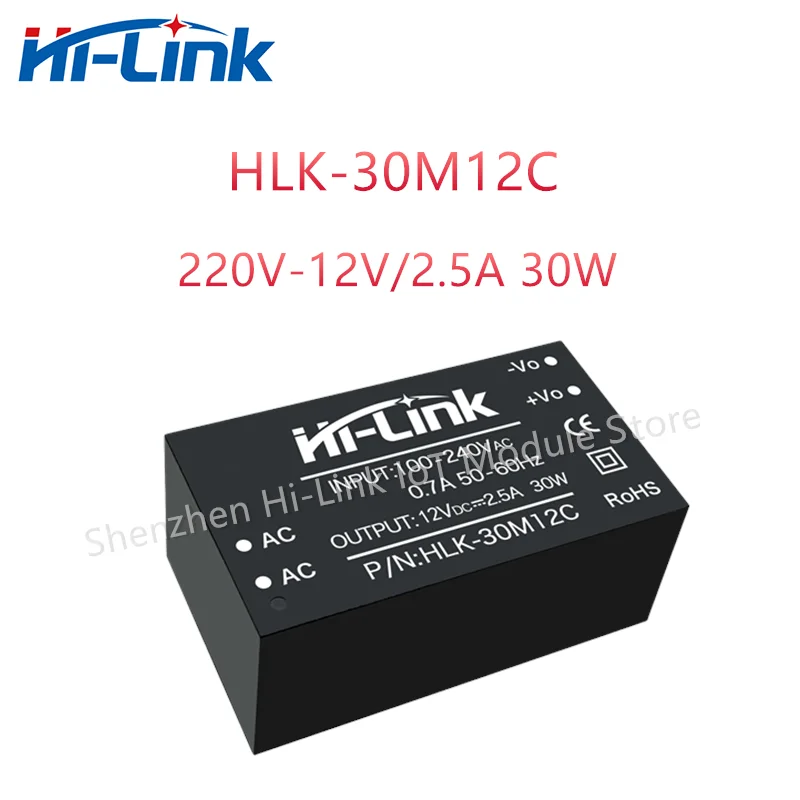

SPECIFICATIONS
Brand Name: bibikoo
Origin: Mainland China
Compatible Brand/Model: None
Model Number: HLK-30M12C
Certification: RoHS
color: Black
Store Temperature: -40-80 ℃
Cooling way: natural cooling
Sea level elevation: ≤2000m
Rated input voltage: 100-240VAc
Input voltage range: 85-264VAc

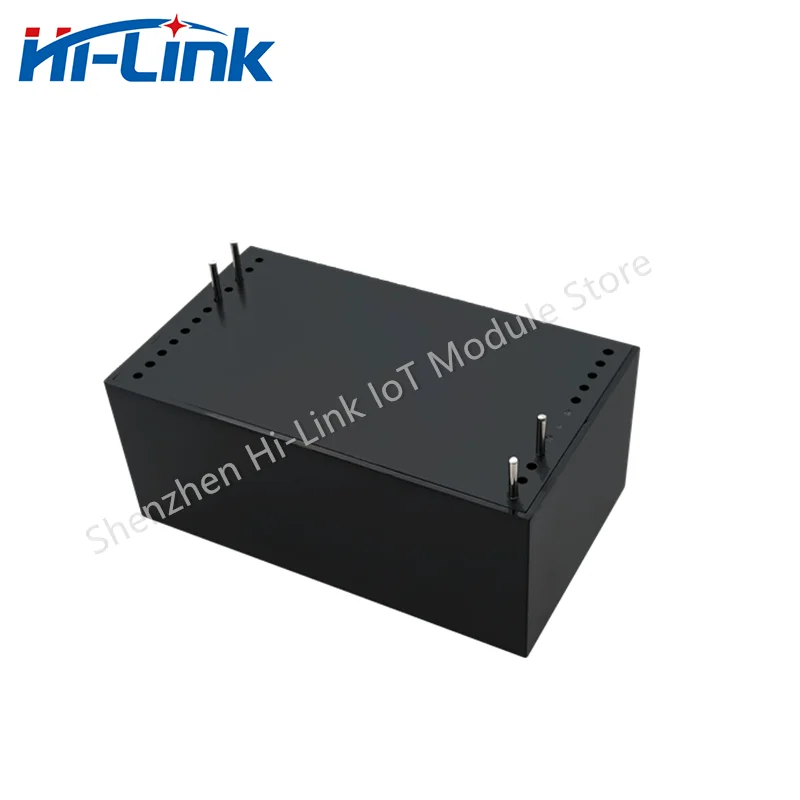

demension: 57.5*33.6*22.5
WE ARE HI-LINK MODULE MANUFACTURER, WELCOME TO PLACE ORDER HERE!
Introduction
The 30W ultra-small series module power supply is a small, high-efficiency module power supply designed by Hi-link Electronics for customers. It has the advantages of global input voltage range, low temperature rise, low power consumption, high efficiency, high reliability, and high safety isolation. It has been widely used in industries such as smart home, automation control, communication equipment, and instrumentation.
Product Features
|
Items |
TechnicalParameters |
Units |
Notes |
|
Working temperature |
-25—+60 |
℃ |
|
|
Storage temperature |
-40—+80 |
℃ |
|
|
Relative humidity |
5—95 |
% |
|
|
Thermal methods |
Natural cooling |
||
|
Atmospheric pressure |
80—106 |
Kpa |
|
|
Altitude |
≤2000 |
m |
|
|
Vibration |
Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes |
Meets requirements for secondary road transportation |
Electrical Characteristics
Input Features
|
Items |
Technical Parameters |
Units |
Notes |
|
Rated input voltage |
100-240 |
Vac |
|
|
Input voltage range |
85-264 |
Vac |
Or120-350Vdc |
|
The maximum input current |
≤0.7 |
A |
|
|
Input inrush current |
≤50 |
A |
|
|
Input low start |
≤50 |
mS |
|
|
Long-term reliability |
MTBF≥100, 000 |
h |
|
|
External fuse recommended |
2A/250Vac |
Slow blow |
Output Features(12V/2500mA)
|
Items |
TechnicalParameters |
Units |
Notes |
|
No-load rated output voltage |
12±0.1 |
Vdc |
|
|
Full-load rated output voltage |
12±0.2 |
Vdc |
|
|
Short time maximum output current |
≥2600 |
mA |
|
|
Long time maximum output current |
2500 |
mA |
|
|
Voltage regulation |
±0.4 |
% |
|
|
Load regulation |
±0.5 |
% |
|
|
Input low voltage efficiency |
Vin=115Vac, Output full load≥86 |
% |
|
|
Input high voltage efficiency |
Vin=230Vac, Output full load≥87 |
% |
|
|
Output ripple and noise (mVp-p) |
≤150 Rated input voltage, output full load. With 20MHz bandwidth oscilloscope, Load side 10uF and 0.1uF capacitance test. |
mV |
|
|
Switching on/off overshoot amplitude |
(Rated input voltage, output plus 10% load)≤5 |
%VO |
|
|
Output over-current protection |
Output maximum load110-150% |
A |
|
|
Output short circuit protection |
Direct short circuit in normal output and automatic return to normal operation after removal of short circuit |
No-damage to the whole device |
Input Voltage and Load Characteristics

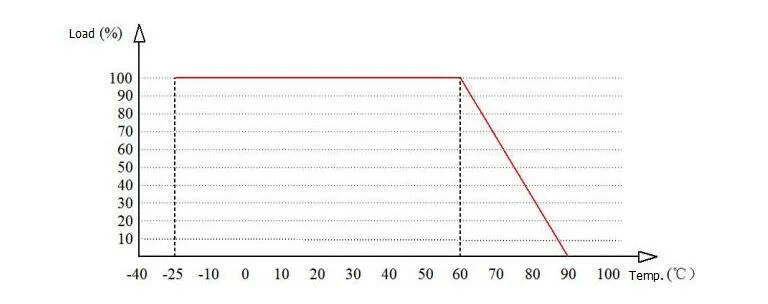

Working Environment Temperature and Load Characteristics

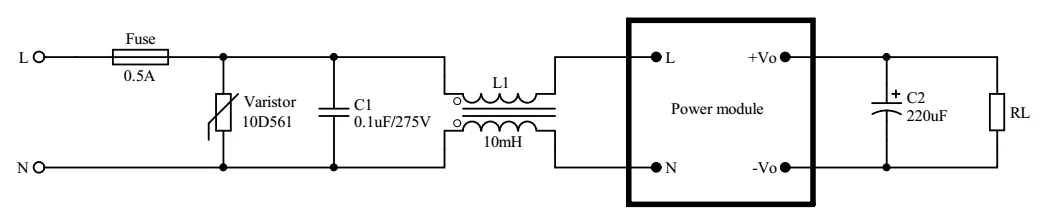

Typical Application Circuit
