Electric Bicycle Isolated Regulated Power Module DC 36V 48V 60V to 12V 1.3A Step-Down DC-DC Converter Isolation Protection Board
Electric Bicycle Isolated Regulated Power Module DC 36V 48V 60V to 12V 1.3A Step-Down DC-DC Converter Isolation Protection Board - Image 2
Electric Bicycle Isolated Regulated Power Module DC 36V 48V 60V to 12V 1.3A Step-Down DC-DC Converter Isolation Protection Board - Image 3
Electric Bicycle Isolated Regulated Power Module DC 36V 48V 60V to 12V 1.3A Step-Down DC-DC Converter Isolation Protection Board - Image 4
Electric Bicycle Isolated Regulated Power Module DC 36V 48V 60V to 12V 1.3A Step-Down DC-DC Converter Isolation Protection Board - Image 5
Electric Bicycle Isolated Regulated Power Module DC 36V 48V 60V to 12V 1.3A Step-Down DC-DC Converter Isolation Protection Board - Image 6
Electric Bicycle Isolated Regulated Power Module DC 36V 48V 60V to 12V 1.3A Step-Down DC-DC Converter Isolation Protection Board - Image 7
Electric Bicycle Isolated Regulated Power Module DC 36V 48V 60V to 12V 1.3A Step-Down DC-DC Converter Isolation Protection Board - Image 8
Electric Bicycle Isolated Regulated Power Module DC 36V 48V 60V to 12V 1.3A Step-Down DC-DC Converter Isolation Protection Board - Image 9
0 reviews
0
0
0
0
0

Reviews

Clear filters

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

SPECIFICATIONS

Brand Name: eletechsup

Hign-concerned Chemical: none

Type: DC/DC Converters

Origin: Mainland China

Size: 49 x 26 x 13mm

Output Frequency: DC-DC

Output Type: SINGLE

is_customized: Yes

Output Current: 1.4A

Output Power: 1 – 50W

Weight: 15g

Model Number: DDIS12TD

Certification: CE

Choice: yes

semi_Choice: yes

Product Name : Electric Bicycle Isolated Regulated Power Module DC 36V 48V 60V to 12V 1.3A Step-Down DC-DC Converter Isolation Protection Board
Description:

Voltage Input :
DC 18~75V

Voltage
output:
DC 12V/1.3A

Switching Frequency 450 kHZ
High efficiency : 87% @ 12V/1.3A
Input UVLO,Output OCP/OVP/OTP
The output voltage can be fine-tuned from 10.8-13.2V
2.25KV isolation and basic insulation
No minimum load required
Operating Temperature :–40°C to +105°C

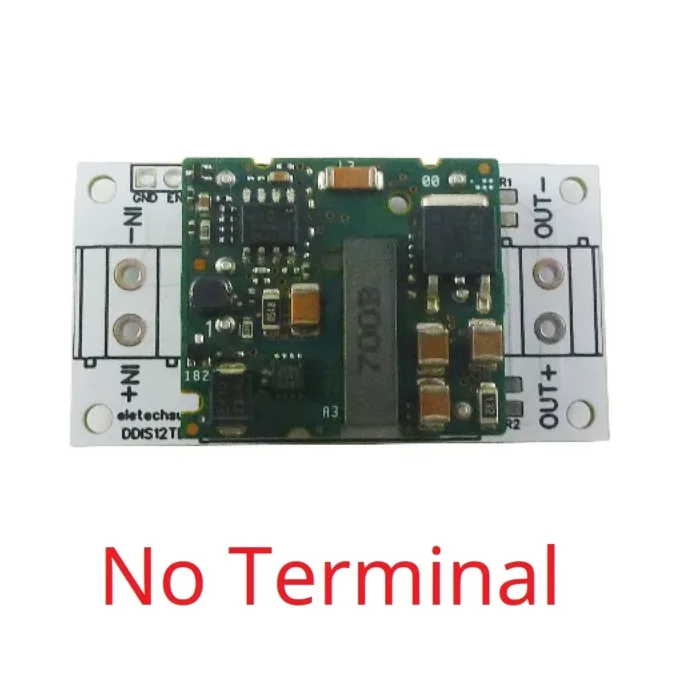

Size : 49 x 26 x 12mm(No Terminal) ,49 x 26 x 16mm(With Terminal)
Weight : 13.5g(No Terminal),18g(With Terminal)
Packing list:

1PCS DDIS12TD Input DC 24V 36V 48V 60V 72V
2.25KV Isolated Output DC 12V 1.3A DC-DC step-down Board

Applications:
for Solar cells, solar panels
for RVs, bed cars, travel cars

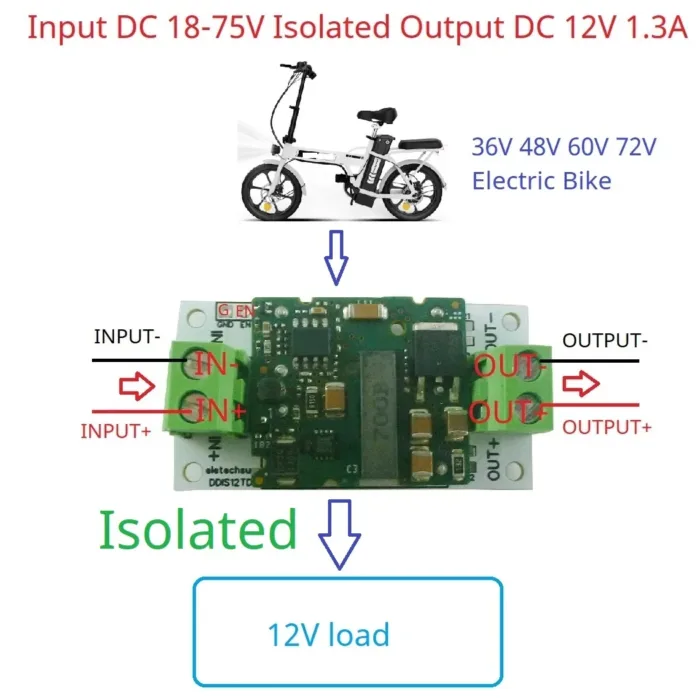

for Electric bicycle /battery car
for Lead acid battery charging
UPS power supply equipment diy
PLC HMI Industrial control equipment

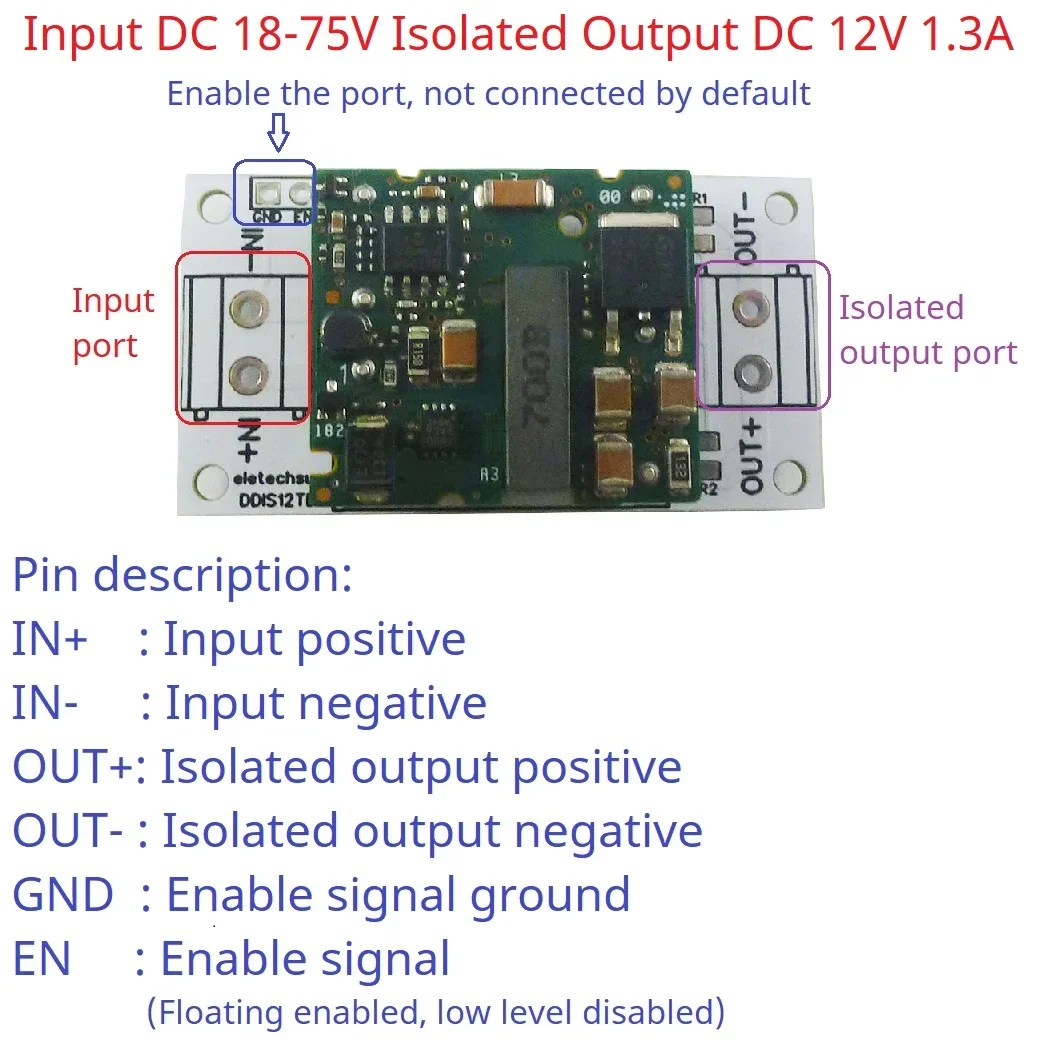

Pin description:

IN+ : Input positive
IN- : Input negative
OUT+: Isolated output positive
OUT-: Isolated output negative
GND : Enable signal ground

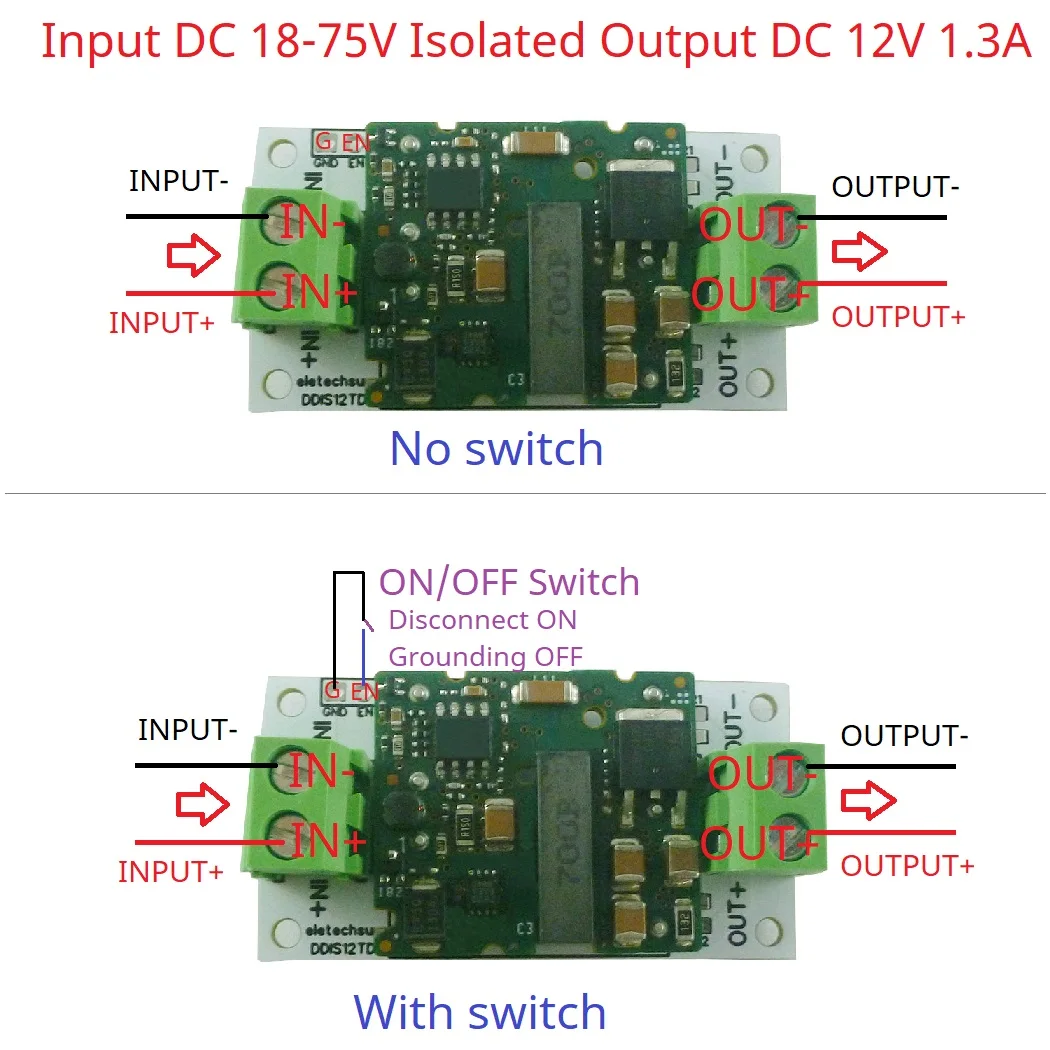

EN : Enable signal(Floating enabled, low level disabled)

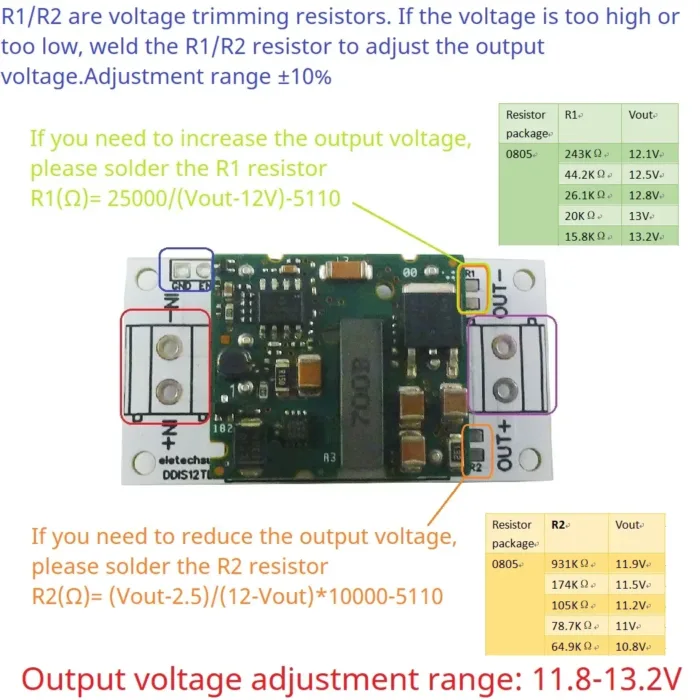

R1/R2 are voltage trimming resistors. If the voltage is too high or too low, weld the R1/R2 resistor to adjust the output voltage.Adjustment range ±10%

If you need to increase the output voltage, please solder the R1 resistor

R1(Ω)= 25000/(Vout-12V)-5110

If you need to reduce the output voltage, please solder the R2 resistor

R2(Ω)= (Vout-2.5)/(12-Vout)*10000-5110
