SPECIFICATIONS

Brand Name: Diese

Use: Universal

Use: Lighting

Use: Electric Door

Use: Automated curtains

Use: SWITCH

Origin: Mainland China

Wireless Communication: RF

Support APP: No

Certification: CE

Certification: RoHS

Frequency: 433 MHz

Channel: 2

Package: Yes

Model Number: KR2402 RF Relay Receiver Door Control System security

Working voltage: DC 5V~30V

Input Voltage: 1~250V

Output Voltage: 1~250V

Quiescent Current: 5mA

Max current: 10A

RF frequency: 433MHz

Working temperature: -30~+80

Receiving Sensitivity: 97dbm

Amount of storage remote controls: 25 pieces

Support encoding: 1527 Leaning code/ 2262 fixed code

RF Operating mode: ASK superheterodyne wireless reception

Receiving range: Open space is more than 50 meters

Remote operating mode: Momentary/ Toggle/ Latched Mode

Application scenario: House, Farm, Factory, Office, Supermarket and so on

Application2: Garage, Light, Automated curtains, Fan, Door, Gate, LED, Lamps, Motor

Pin: NO COM NC



433Mhz Universal Wireless rf remote control arduino DC 5V~30V 10A 2CH rf Relay Receiver and Transmitter for motor garage door

  Product Application Area

Products can be used in lighting, garage doors, shutter doors, remote control curtains, DC motors, motor reversing. and many more

---

  Package include

Receiver module  (include shell)
Remote Control  (include battery )
Product Manual

---

---

  Products  Display

Tips:

All of our products are of high quality! If you have other needs, please feel free to purchase them in our store.

Click here to search more

---

  Products  Data

• Working Voltage  :  DC 5V~30V

• Input vlotage  : 1~250V

• Output vlotage  : 1~250V

• Quiescent Current  : <5MA

• Max current  :  10A

• RF frequency  : 433MHz

• Working temperature  : -30~+80

• Receiving Sensitivity  : >97dbm

• Amount of storage remote controls  : 25 pieces

• Support encoding  : 1527 Leaning code/2262 fixed code

• RF Operating mode  : ASK superheterodyne wireless reception

• Receiving range  : Open space is more than 50 meters

• Remote operating mode  : Momentary Mode /Toggle Mode /Latched Mode

---

  Wiring diagram

1 NC:Normally closed Output

2 COM:Common port

3 NO:Normally open Output

---

  Operating Mode

You can match the Remote Control with the Receiver Switch Module  in 3 modes.

---

  Set Up

   –  Part 1: Delete the existing data about remote mode

Note:When you receive our products, it maybe set in one remote mode randomly, that because each product got test when it can be arranged to shipment.So, please delete the existing data about remote modefor the first application.



Press the learning button (on the Receiver) 8 times. The existing data will be deleted succeed.

After deleted the data, all the remote control cannot work any more.

   – Part 2: Set up

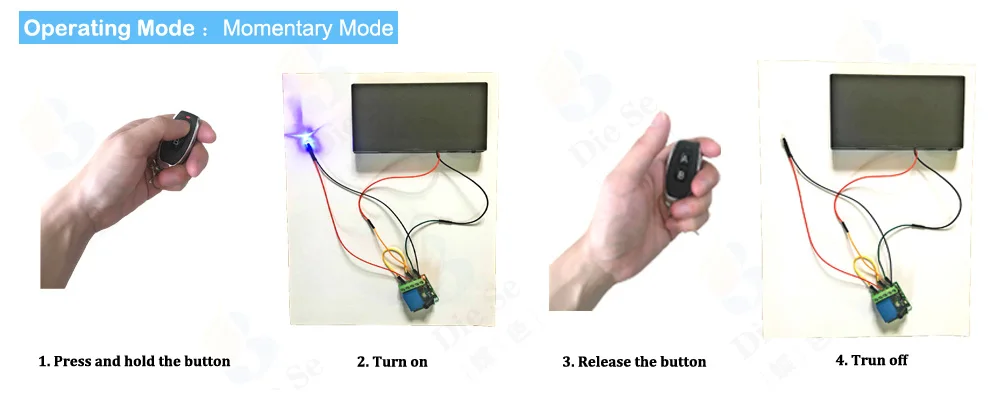

Set up : Momentary Mode

• STEP 1

Press and release the learning button on the Receiver Switch Module board once.

Wait for a moment , the LED will turn off , indicating you entered the learning state.

• STEP 2

Press button "A" on theRemote Control, the LED on the receiver board will flash on then off indicating the button was learned.

• STEP 3

Press button "B" on the Remote Control, watching the LED go on and off again.

Wait 3 seconds, the LED will turn on again, indicating system is ready for use.



Set up :Toggle Mode

• STEP 1

Press and release the learning button on the Receiver Switch Module board twice.

Wait for a moment , the LED will turn off , indicating you entered the learning state.

• STEP 2

Press button "A" on the Remote Control, the LED on the receiver board will flash on then turn off , indicating the button was learned.

• STEP 3

Press button "B" on the Remote Control, watching the LED go on and off again.

Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use

Set up : Latched Mode

• STEP 1

Press the learning button on the Receiver board 3 times.

• STEP 2

Press button "A" on the Remote Control,

• STEP 3

Press button"B" on the Remote Control

Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use.

On this products details page, there is a demonstration video available.
