SPECIFICATIONS
Brand Name: None
Origin: Mainland China
Insulation Material: XLPO
Conductor Material: Copper
Conductor Type: Stranded
Type: Insulated
Certification: CE
Model Number: PV1-F
Application: Overhead
Rated current: 30 / 50 / 70A
Specifications: 2.5/4/6 sqmm
Rated voltage: AC0.6/1KV DC1.5KV
Color: Red black
Number of pins: 2 Pin(Improvement of ordinary photovoltaic cable)
Certification: TUV approved
Conductor material: stranded tin-plated ~ 99.95% oxygen-free copper
Sheath material: low smoke halogen free flame retardant polyolefin
Application: Indoor and outdoor solar installations
✔ Ordering notes:
● Repeated purchase of the same kind of cable, the length is added up, no cutting.
● For example, if you buy 10 meters and 20 meters at the same time, you will receive a cable with a total length of 30 meters.
✔ About express delivery:
● Orders price < $5, delivered by Cainiao Super Economy Global | AliExpress Saver Shipping.
● Orders price ≥ $5, delivered by AliExpress Standard Shipping (can be tracked online, 10-25 days arrived).
● The weight > 2kg, delivered by AliExpress Premium Shipping / TNT / FedEx / UPS etc. (5-20 days arrived).

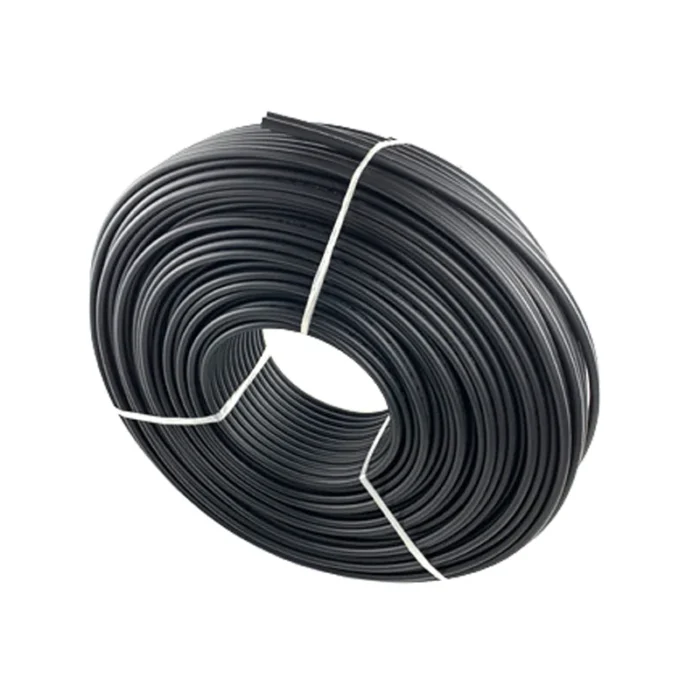

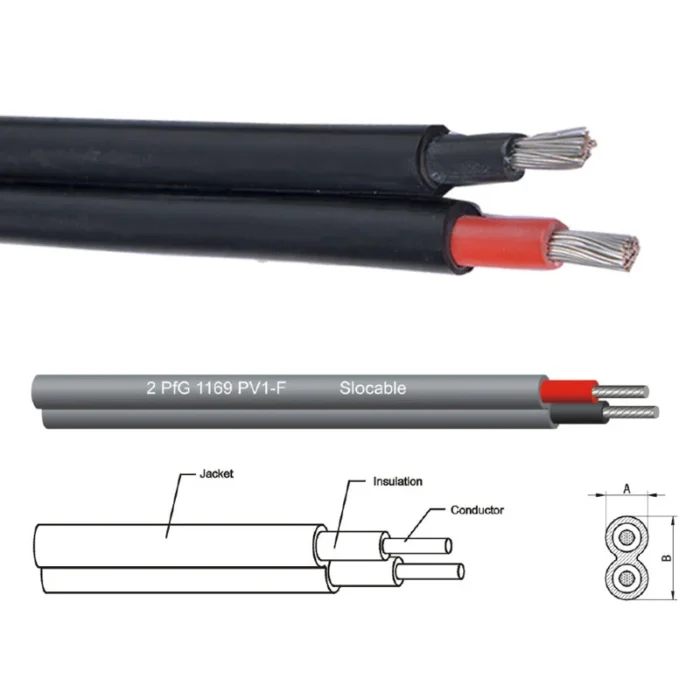

PV1-F 2 Pins Solar PV Cable
INTRODUCTION
Rated current: 28 / 36 / 48A
Product specifications:2.5/4/6mm²
Rated voltage: AC0.6/1KV DC1.5KV
Color: The sheath is all black, the inner insulation is red and black
Number of pins: 2 pins (Improvement of ordinary solar cable)
Feature: Double insulation cover, Sun resistant, TUV approved
Conductor material: stranded tin-plated ~ 99.95% oxygen-free copper
Insulation material: Halogen free cross-linked polyolefin (XLPO)
Sheath material: Halogen free cross-linked polyolefin (XLPO)
Service life: 25 years (-40 ℃ -90 ℃)
Application: Indoor and outdoor solar installations
Fire rating: UL94-V0
TECHNICAL PARAMETERS
|
Type |
American Gauge |
Safe current |
Strand design |
Conductor diameter |
Conductor resistance |
Outer diameter |
Rated voltage |
|
AWG |
A |
No.xφ(mm) |
mm |
Ω/km |
mm |
V(AC/DC) |
|
|
2×2.5mm² |
2×14 |
28 |
50xφ0.25 |
2.0 |
8.06 |
5.40*10.90 |
1000/1800 |
|
2×4.0mm² |
2×12 |
36 |
56xφ0.30 |
2.6 |
4.97 |
6.20*12.50 |
1000/1800 |
|
2×6.0mm² |
2×10 |
48 |
84xφ0.30 |
3.3 |
3.52 |
7.10*14.30 |
1000/1800 |
ADVANTAGES
