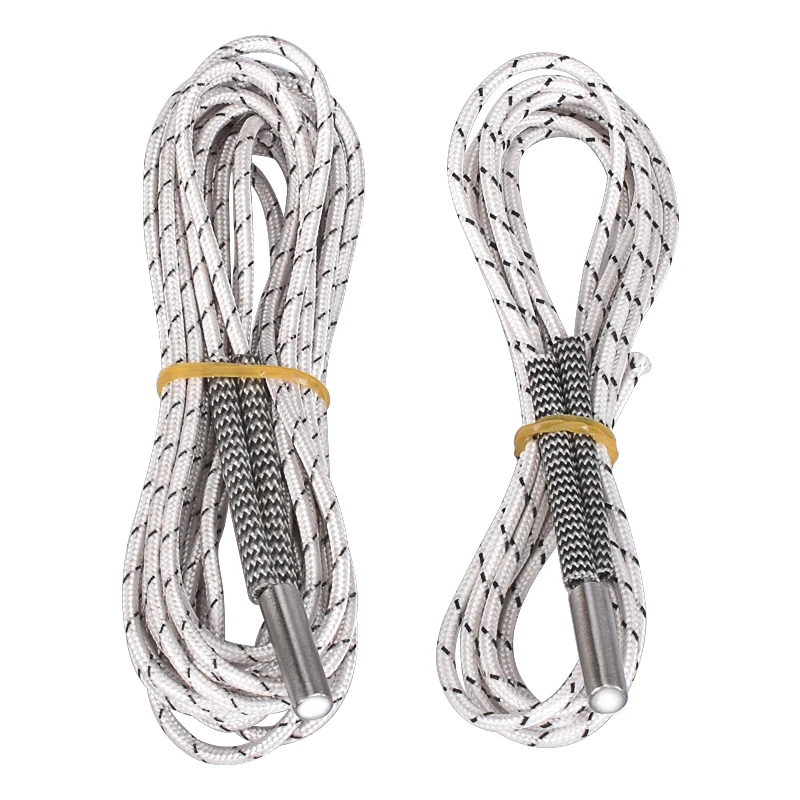

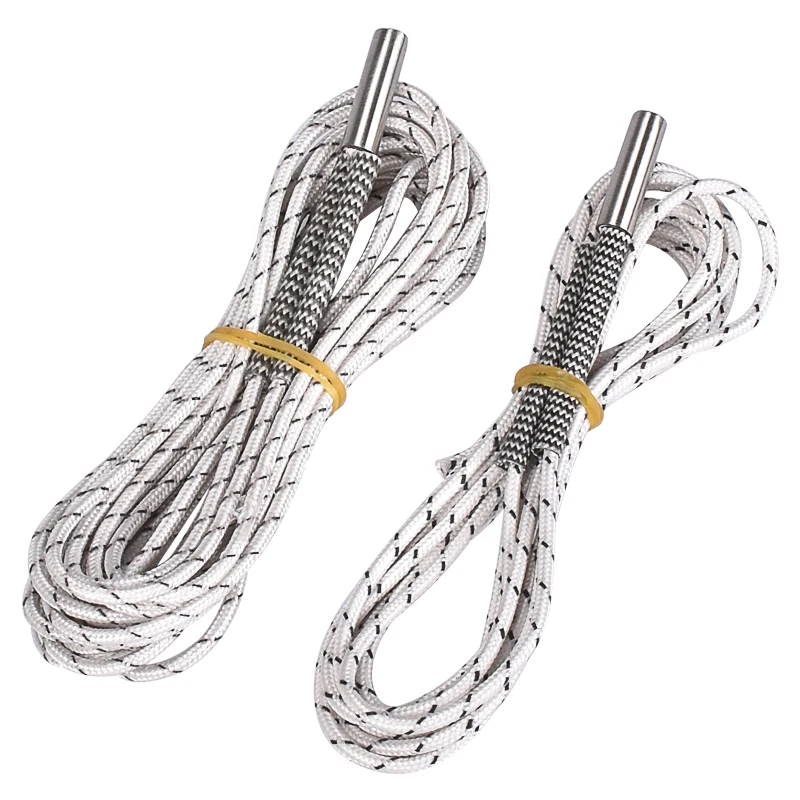

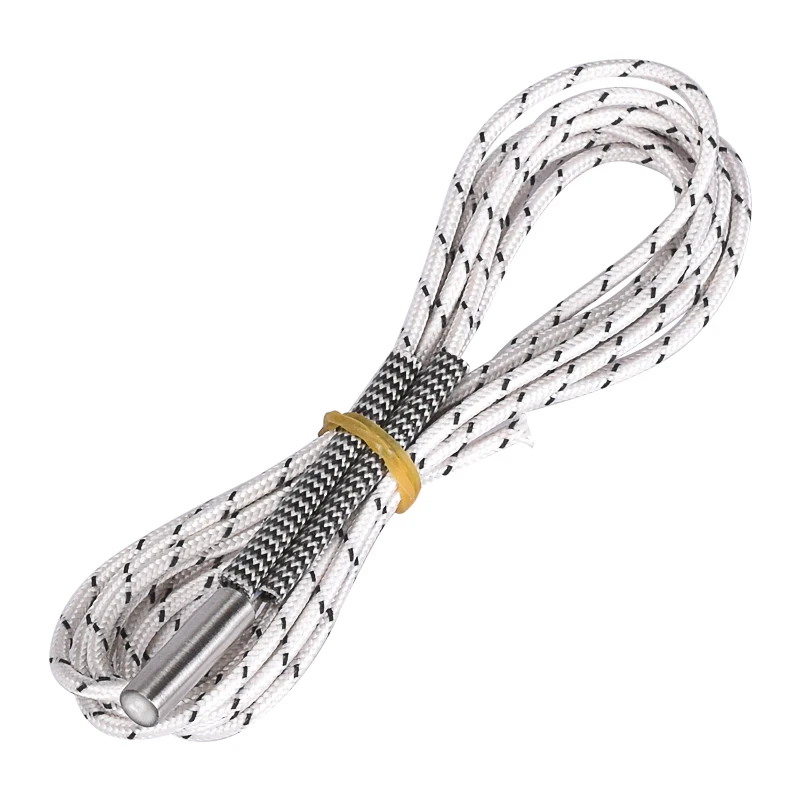

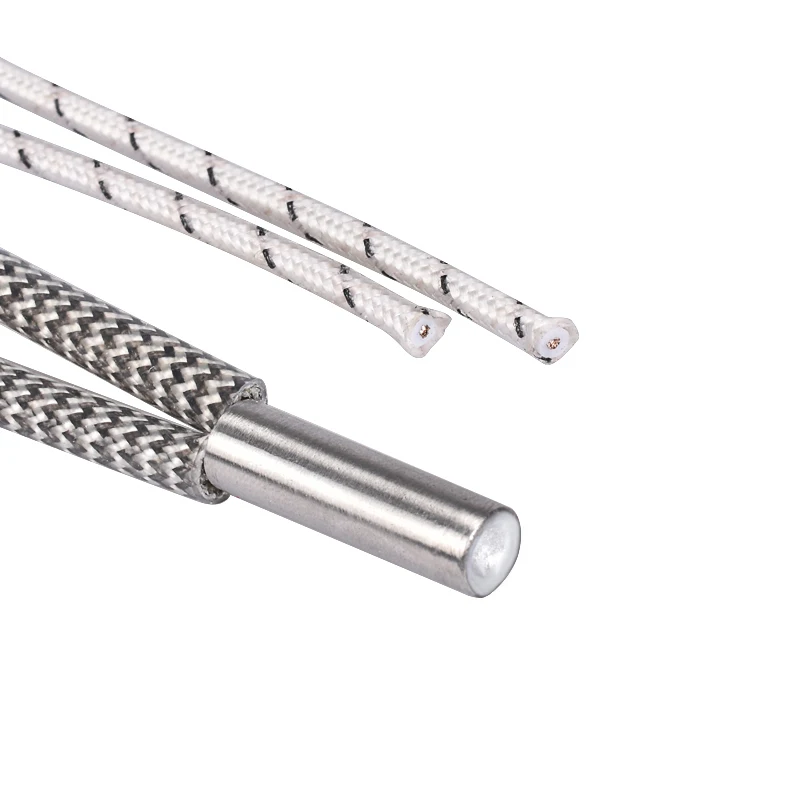

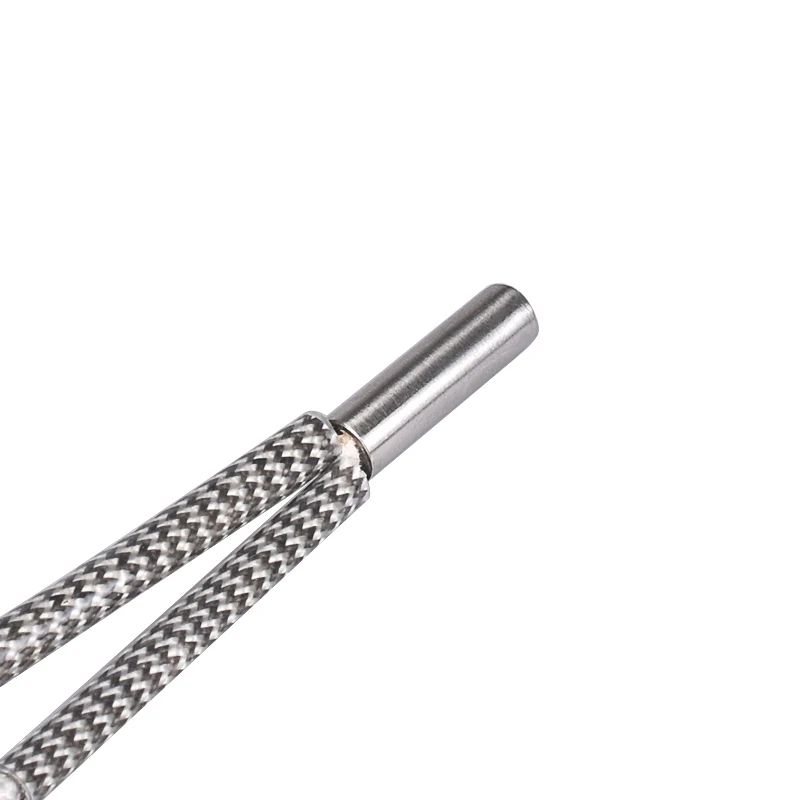

1M/2M Heating tube 6*20mm 12V 24V 50W Ceramic Cartridge Heater Reprap&Mendel For HotEnd J-Head 3D Printer Parts - Image 1

1M/2M Heating tube 6*20mm 12V 24V 50W Ceramic Cartridge Heater Reprap&Mendel For HotEnd J-Head 3D Printer Parts - Image 2

Click to enlarge

1M/2M Heating tube 6*20mm 12V 24V 50W Ceramic Cartridge Heater Reprap&Mendel For HotEnd J-Head 3D Printer Parts

1M/2M Heating tube 6*20mm 12V 24V 50W Ceramic Cartridge Heater Reprap&Mendel For HotEnd J-Head 3D Printer Parts - Image 3

1M/2M Heating tube 6*20mm 12V 24V 50W Ceramic Cartridge Heater Reprap&Mendel For HotEnd J-Head 3D Printer Parts - Image 4

1M/2M Heating tube 6*20mm 12V 24V 50W Ceramic Cartridge Heater Reprap&Mendel For HotEnd J-Head 3D Printer Parts - Image 5

1M/2M Heating tube 6*20mm 12V 24V 50W Ceramic Cartridge Heater Reprap&Mendel For HotEnd J-Head 3D Printer Parts - Image 6

Rated 0 out of 5

0 reviews

Rated 5 out of 5

0

Rated 4 out of 5

0

Rated 3 out of 5

0

Rated 2 out of 5

0

Rated 1 out of 5

0

Reviews

Clear filters

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

SPECIFICATIONS

Name: 1M/2M Heating tube 6*20mm 12V 24V 50W Ceramic Cartridge Heater Reprap&amp;Mendel For HotEnd J-Head 3D Printer Parts
SKU: cvsb2f57c080008vg5r0
Availability: InStock

Brand Name: BIQU

Choice: yes

Heater Head Material: 304 stainless steel

Item Type: Cartridge Heater

Length: 1m/2m

Maximum Heating Temperature: up to 350 degree

Model Number: Ceramic Cartridge Heater

Origin: Mainland China

Power: 50 W

Product Name: Ceramic Cartridge Heater

Quality: Guarantee

Size: 6*20mm

Stock: in stock

Voltage: 12V/24V

semi_Choice: yes

Welcome to our store

Product specification

Voltage: 12V/24V

Power: 50W

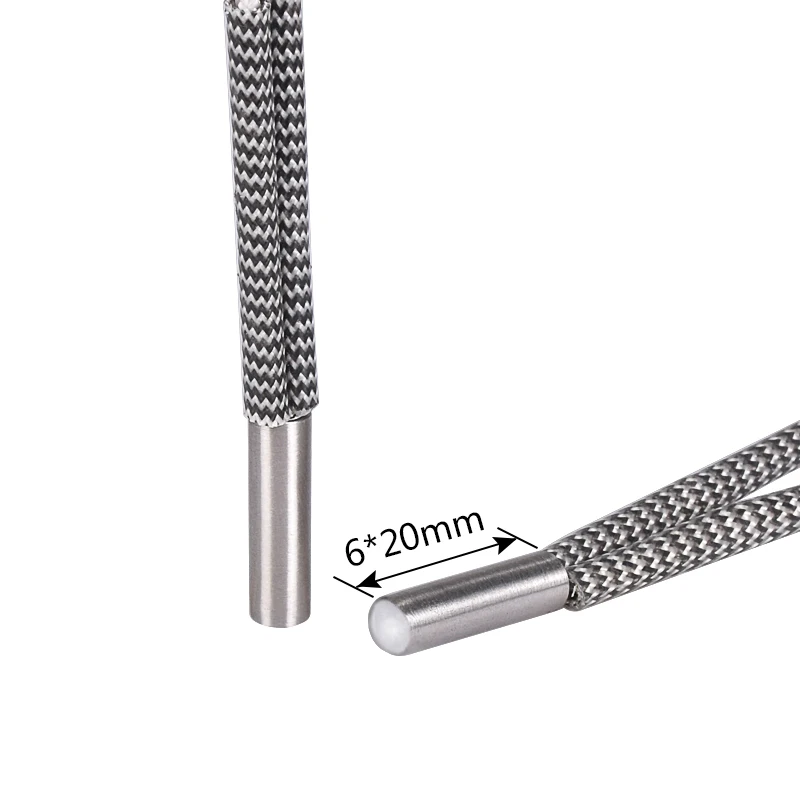

Heating head size: 6 * 20mm

Heating head material: 304 stainless steel

Line length: 1M and 2M for option

Line thick: 0.5 mm⊃2; (The cross section of the copper wire inside the heater is 0.5mm⊃2;

Heating temperature: up to 350 degrees

The improvement compared to ordinary red heater

1. From the original ordinary 0.3-line high-temperature line to 0.5-line thick white high-temperature line, can bear higher temperature, and looks more beautiful.

2. From the original 40W power to 50W, therefore, the maximum temperature increases from 300-31℃ to 340-350℃ or so.

3. The new version heater used in all imported skills, the use of 304 stainless steel, with the internal use of 2080 nickel chrome wire to achieve maximum service life.

4. Support the customization of different specifications, length, resistance of the heater.

5. Can be used with the new HT-NTC100K temperature thermistor (Temperature measurement can be up to 350 degrees).

Notice

1. The effective heating part of the heater must keep dry.

2. The electrical connector of the single-ended heater should be placed out of the insulation layer and heating room, and the working voltage shall not exceed its rated value of 10%. The shell should be effectively grounded.

3. Electric components working environment, the temperature should not be greater than 95 degrees, no explosive or corrosive gases.

4. Electric components should be stored in a dry place.
